Pico 2G Cellular Expansion Module

Description

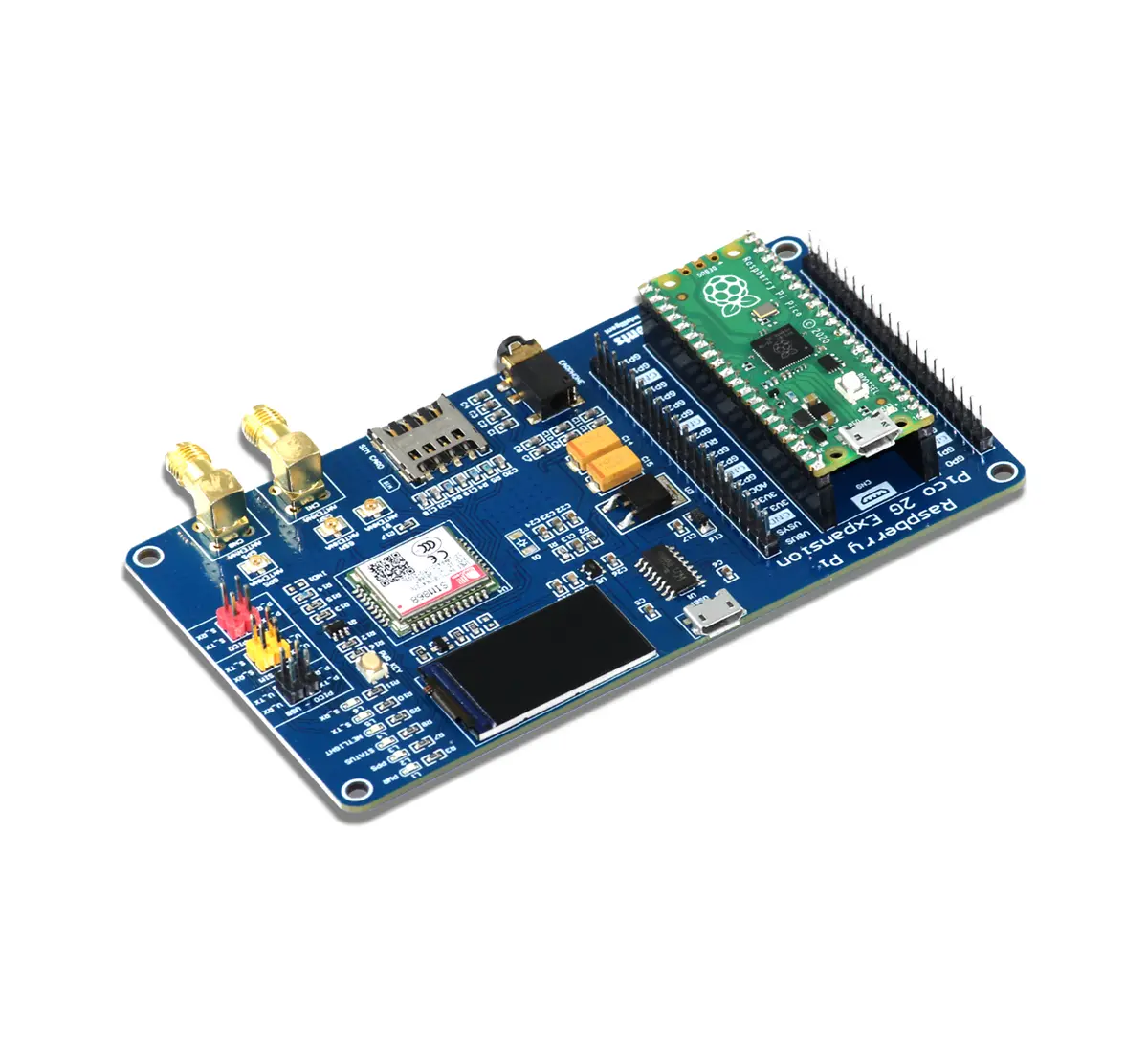

Raspberry Pi Pico 2G Expansion is a QUAD-Band GSM/GPRS/GNSS Expansion designed dedicatedly for Raspberry Pi Pico with UART, USB 2.0 Interface, 850/900/1800/1900 MHz, Bluetooth 3.0 based on SIM868 module to perform easy and efficient communication. Pico 2G Expansion works on the embedded TCP/UDP Protocols with Multi-constellation GNSS receiver support.

Pico 2G Expansion also includes a 1.14-inch display with a resolution of 240 x 135 pixels, 65K RGB colours, and a sharp and vivid exhibiting effect, designed primarily for user engagement via SPI connection by incorporating a GPIO header. The 1.14-inch LCD includes the ST7789 Driver and SPI Interface, decreasing the amount of IO pins required.

Features:

• 2G GSM Connectivity: Supports 2G GSM communication for data transmission, voice calls, and SMS messaging.
• GPRS Support: Allows for GPRS (General Packet Radio Service) for low-speed data transfers, ideal for IoT applications.
• SIM Card Slot: Includes a SIM card slot for connecting to a mobile network for data and communication.
• GPIO Access: Full access to Raspberry Pi Pico GPIO pins for additional sensors and devices.
• Low Power Consumption: Energy-efficient design for remote, battery-powered applications.
• Easy Integration: Simple, straightforward setup with minimal configuration required.
• Flexible Applications: Suitable for SMS-based alerts, remote monitoring, and low-bandwidth data exchange.
• Open-Source Compatibility: Compatible with Arduino IDE for easy programming and customization.

Specifications:

• Connectivity: 2G GSM, GPRS, SMS, and voice communication
• SIM Card Slot: Supports standard SIM cards
• Compatibility: Designed for Raspberry Pi Pico
• Power Consumption: Low power design suitable for remote, battery-operated systems
• Interface: Serial interface (UART) for communication with Raspberry Pi Pico
• GPIO Pins: Full access to Raspberry Pi Pico GPIO pins for integration with additional hardware
• Software Support: Compatible with Arduino IDE for easy programming and customization
• Dimensions: Compact form factor ideal for integration with other hardware

Kit Content:

1 x Pico 2G Expansion Only

Resources:

• GitHub
• Wiki
