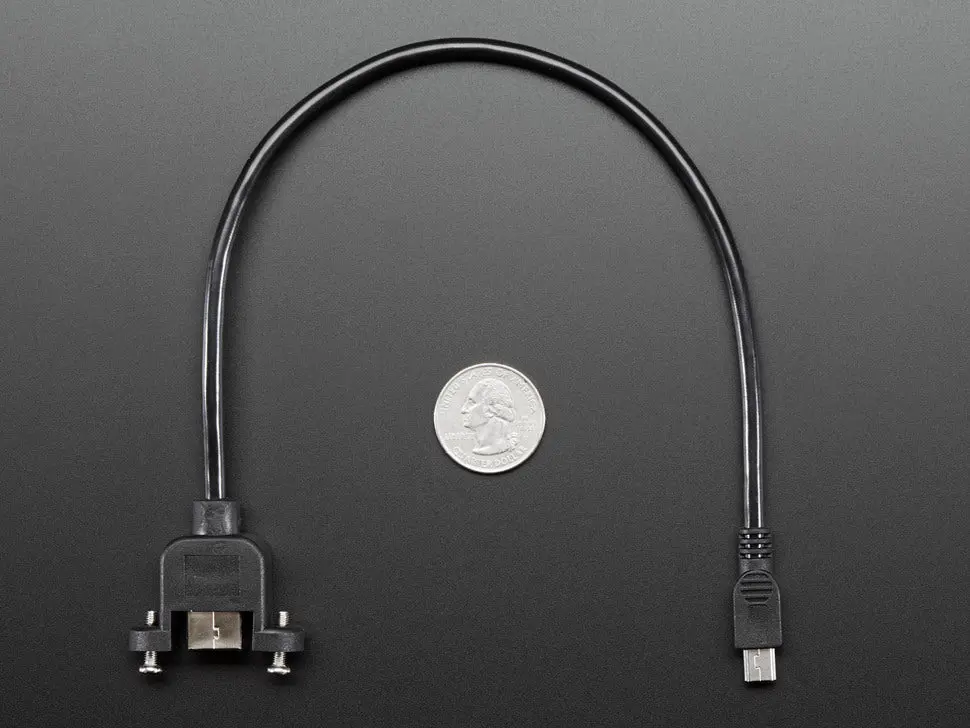

Panel-Mount USB Cable: Type-B Female to Mini-B Male

Description

This handy USB extension cable is designed to easily enclose a device with a mini-B USB type port, making it perfect for projects with Teensy, FTDI friend, USB LiPo charger, USB Boarduino, and similar devices.

The cable features a panel-mount USB-B female jack with two mounting ears spaced approximately 28.5mm apart, using M3 screws. It can be installed on box walls ranging from 0.125″ to 0.25″ thickness. For thinner walls, shorter M3 screws can be used. The entire cable length is 12.5″ (318mm).

• Cable length: 12.5″ (318mm)
• Screw size: 12mm, M3
• Panel mount USB-B female socket
• USB Mini-B male plug
• RoHS 2 2011 65 EU and RoHS 2 2015 863 EU compliant

Download Diagram PDF
