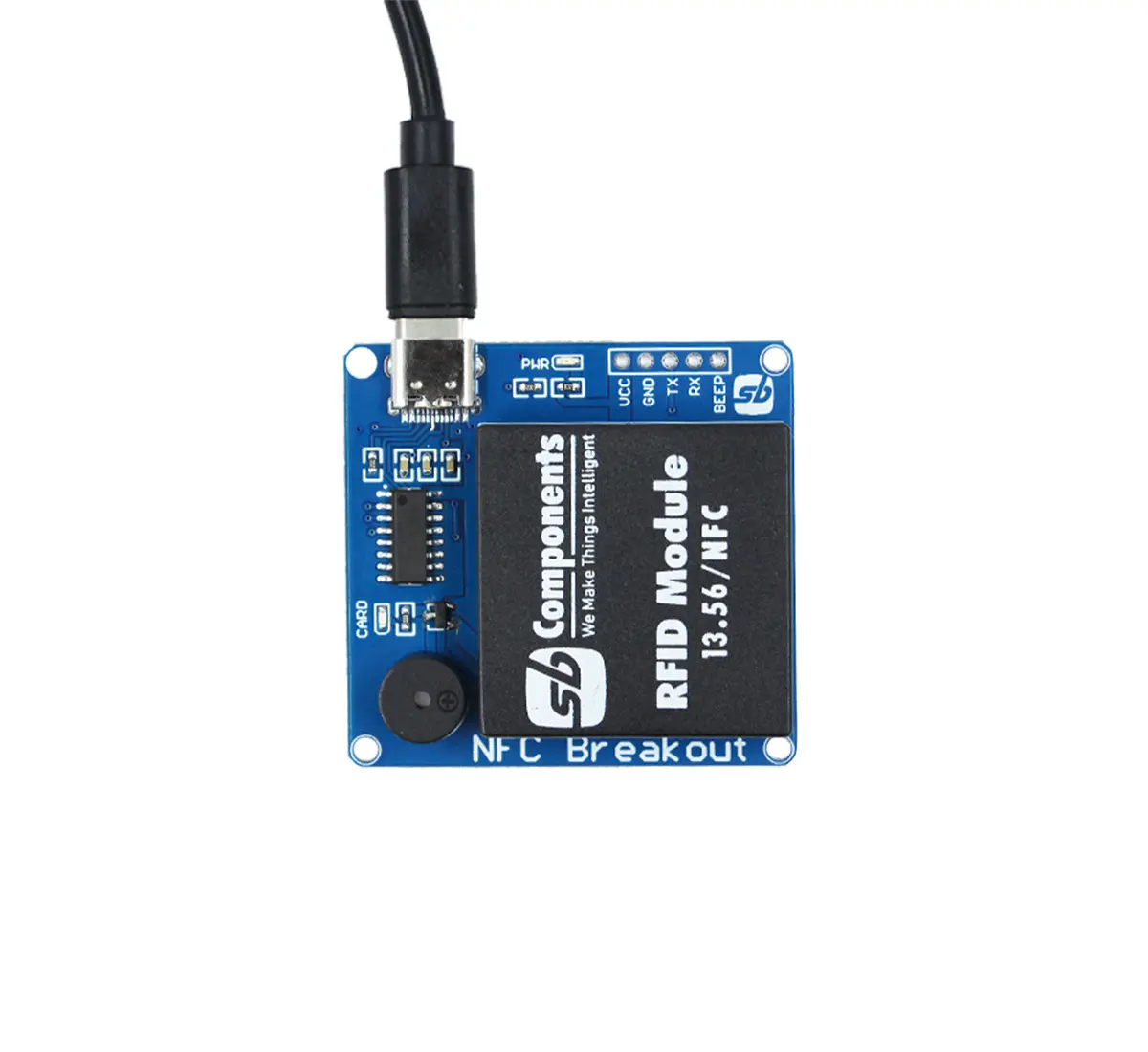

NFC Breakout Module for Arduino and Raspberry Pi

Description

Introducing the NFC Breakout the ultimate NFC for your microcontrollers and microprocessors etc. With contactless communication, you may easily extend the capabilities of your devices.
It works at a high frequency of 13.56 MHz. This enables both read and write operations, providing a wide reading range and fast interaction times.
It has an inbuilt antenna and is compatible with a variety of NFC protocols, making it ideal for secure access, IoT projects, and interactive exhibits.

Features:

• Adopt a special base station RF chip, stable performance, good compatibility
• Both Read/Write operations are possible
• Integrated Antenna
• Communication Interface: TTL
• Support Protocols like ISO14443B, ISO18092
• Contactless card supports like NTAG213, Mifare one S50, Mifare one S70, ultralight, FM11RF08
• Multi-tune Buzzer to add audio alert into the project
• Status LED for board power, and Tag Scan indication
• USB for communication

Specifications:

• NFC Module Frequency: 13.56MHz
• Reading Distance: >50mm (The effective distance is related to the IC card and the use environment)
• Reading Time: <200ms
• Output Format: TTL
• Size: 28.9 x 28.9mm
• Supply: 5V DC
• Operating Current: 50mA
• Operating Temperature: -15°C to +55°C
• Storage Temperature: -20°C to +70°C

Pinout:

Dimension:

Resources:

• Software GitHub – This Repo contains Library and Example codes.
• Hardware GitHub – This Repo contains Schematic, Datasheet, etc.
