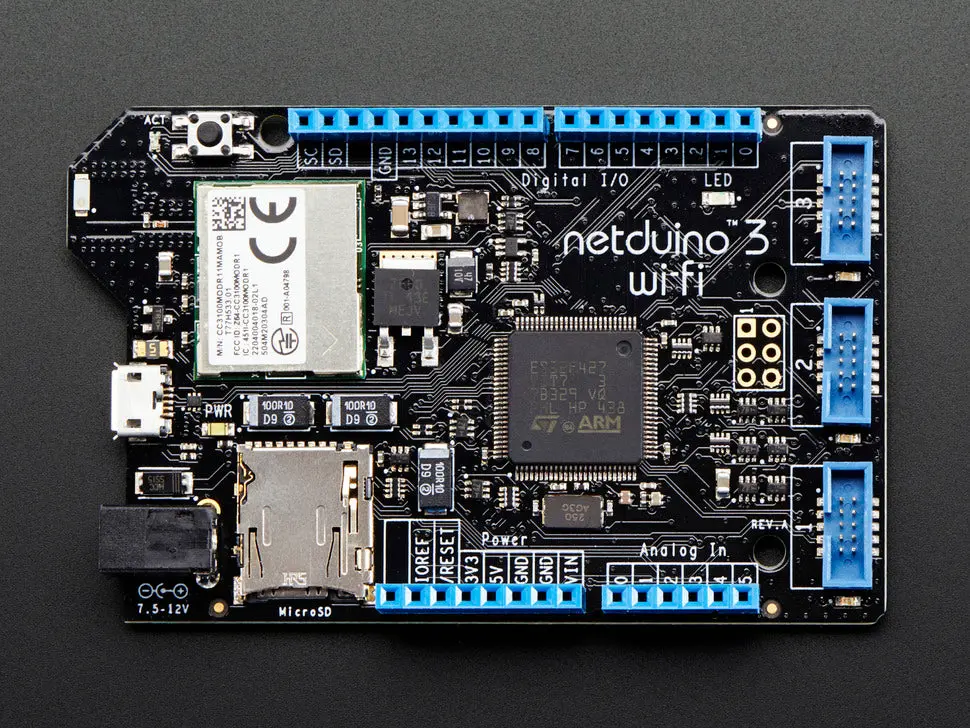

Netduino 3 WiFi – .NET-Enabled Programmable Microcontroller

Description

NETduino is an open source electronics platform using the .NET Micro Framework, featuring a 32-bit Cortex-M4 microcontroller with Wi-Fi built-in, including SSL/TLS 1.2 and WPA2 support. The NETduino 3 WiFi operates at 168 MHz, nearly quadrupling code storage and nearly doubling RAM compared to previous models, making it suitable for engineers and hobbyists.

Features include:

• Works with most Arduino shields (some require .NET MF drivers)
• 6 ADC channels (12-bit)
• Micro SD storage support up to 2 GB
• 3 GoBus ports

In the bag:

• NETduino 3 WiFi board
• Four rubber bumpers
• 5 cm GoBus cable

Technical Details:

• Operating Temperature: 0° – 70°C
• Power Input: 7.5-12 VDC or USB powered
• Power Output: 5 VDC and 3.3 VDC regulated
• Dimensions: 80.3mm x 53.6mm x 12.3mm (3.2″ x 2.1″ x 0.5″)
• Weight: 27.0g / 1.0oz

For more detailed technical specs, see the STM32F427VI Datasheet and Schematics. For support, replacement parts, and warranty information, visit the NETduino forums.
