Description
Brand: MSD Ignition
Manufacturer’s Part Number: 6428
Part Type: Ignition Boxes
Product Line: MSD Digital 6CT Ignition Controllers
Automotive Fittings Part Number: MSD-6428
UPC: 085132064281
Ignition Box Output: Capacitive discharge
Circuitry: Digital
Rev Limiter: Yes
Timing Retard: Three-stage
Data Acquisition: Yes
CD Voltage Output to Coil: 535-550 V
Current Draw: 0.8 amps per 1,000 rpm
Spark Output (millijoules): 135-150 mJ
Minimum Operating Voltage: 6 V
Maximum Operating Voltage: 18 V
Length (in.): 7.890 in.
Height (in.): 1.870 in.
Width (in.): 4.000 in.
Ignition Box Color: Red
Coil Included: No
Quantity: Sold individually.
Description:

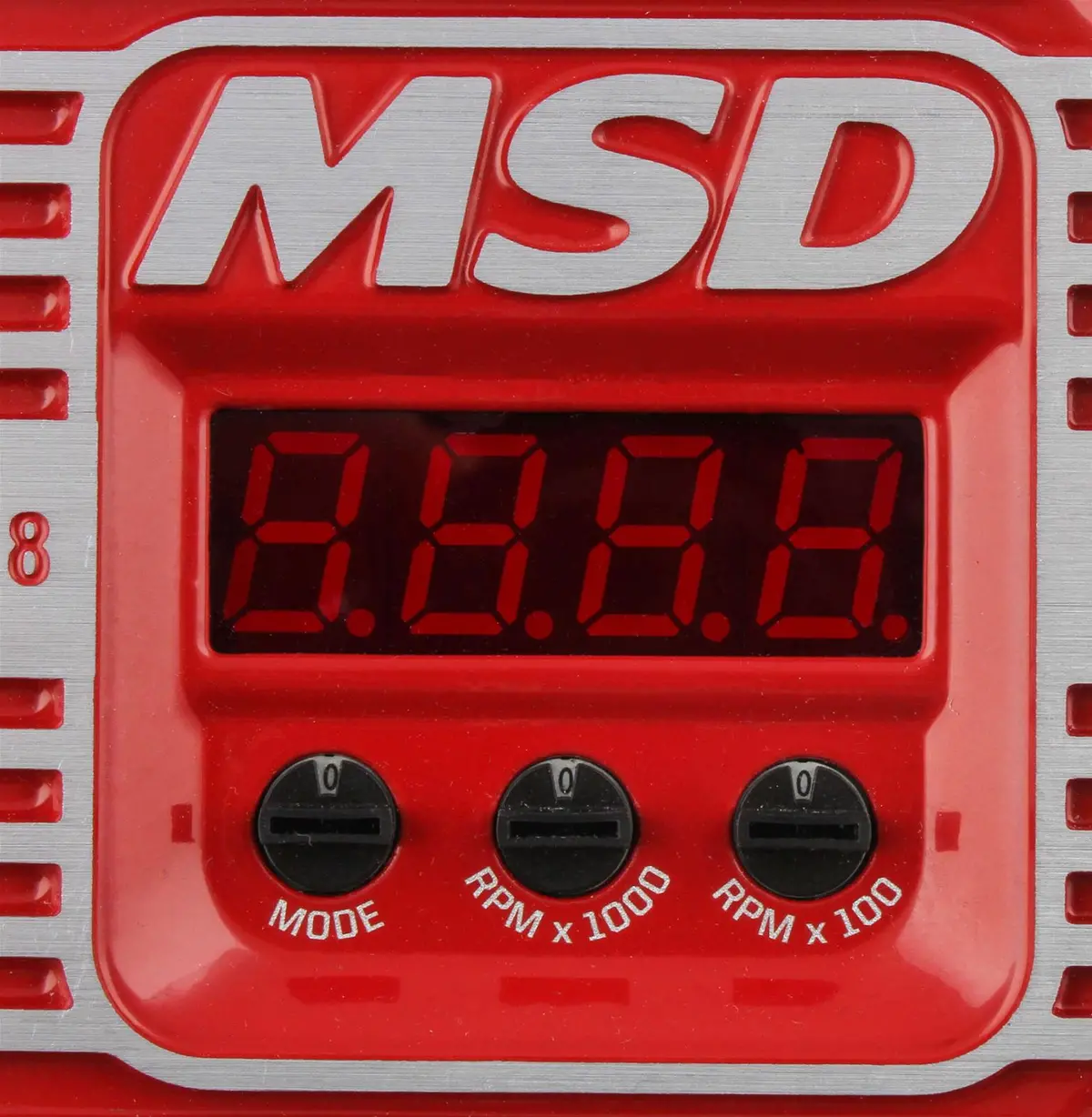

MSD Digital 6CT ignition controllers are hardcore ignitions that work as hard as you do at the track. Their superior design is packed with a slew of features, including a large, easy-to-read LED display and a simple setup utilizing three rotatory dials. MSD Digital 6CT ignition controllers offer the smoothest performance ever that comes in a fully potted, tamper-proof housing that uses a single connector to keep wiring tidy.
MSD Digital 6CT ignition controllers feature:
* Built-in start retard adjustable in 0, 10, or 20-degree increments for quick, easy starts and extended starter life
* LED displays rev limit, highest rpm turned, cylinder select, start retard, battery voltage, and can be set to tach mode
* Full delivery of spark energy down to 6 V battery supply
* Highly efficient, low-current draw for extended battery life
* Single plug-in connector for clean wiring
* Tamper-proof screws to prevent modification of unit
* Records highest rpm the engine turned for last 20 minutes of run time
* Works on 4, 6, and 8-cylinder engines
* Reverse polarity and overheat protection provide ultimate reliability
