Monk Makes Raspberry Pi Servo Motor Kit

Description

Learn how to control servos with the Raspberry Pi using the Monk Makes Servo Kit. This easy-to-use kit includes the ServoSix interface board, two servos, jumper wires, a battery box, and a Raspberry Leaf GPIO template to help you find the right pins.

The ServoSix board allows control of up to six servos with a Raspberry Pi. It features terminal block style power input, 18 pin headers for servos, and 6 pin headers to connect to the Pi. It has a power indicator LED, and built-in reverse polarity and over-current protection to safeguard the Pi’s GPIO pins.

The downloadable guide provides a complete introduction from setup to programming for controlling the servos. This kit can also be used with Arduino, with coding instructions included.

Note:

• Raspberry Pi and batteries are not included.

Features

• Learn servo control with Raspberry Pi.
• Includes two servos for immediate project use.
• Raspberry Leaf GPIO template for easy connection.
• Comprehensive downloadable instructions from setup to coding.
• Compatible with Arduino with included coding guide.
• ServoSix board specifications:
  • Screw terminals for servo power supply.
  • Reverse-polarity protection for servo power.
  • 470µF 16V capacitor for servo supply.
  • 470Ω current limiting resistors for GPIO protection.
  • Power indicator LED.

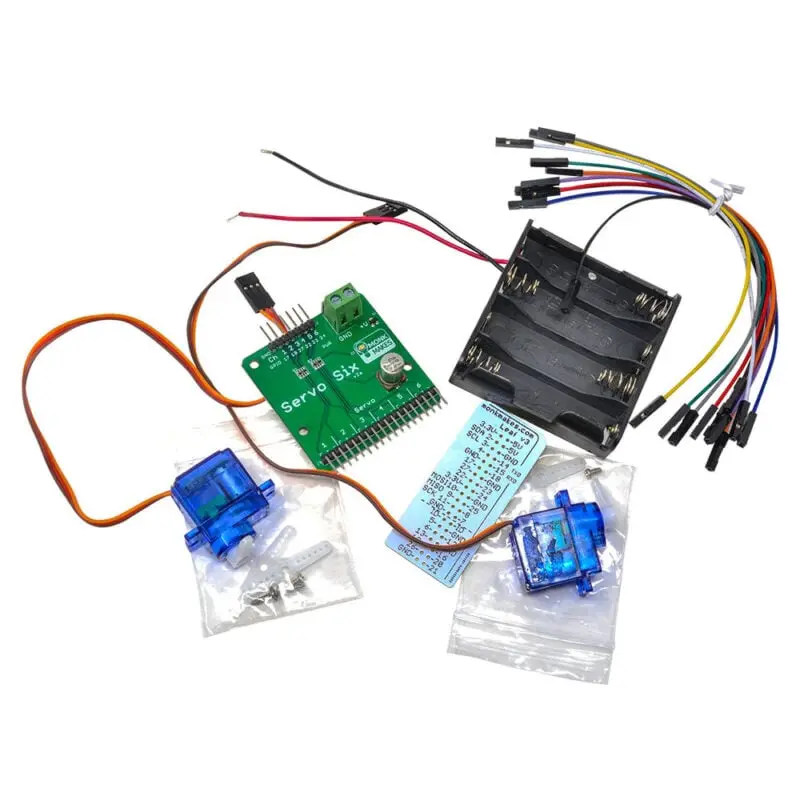

Contents

• 1 x Monk Makes ServoSix interface board
• 2 x Servo motors
• 1 x Raspberry Leaf GPIO template
• 1 x 4AA battery holder
• 1 x pack of female to male jumper wires
• 1 x pack of male to male jumper wires
• Instructions and basic setup guide

Requirements

• Raspberry Pi (not included)
• 4 x AA batteries (not included)

Resources

• Instructions (PDF)
