Description

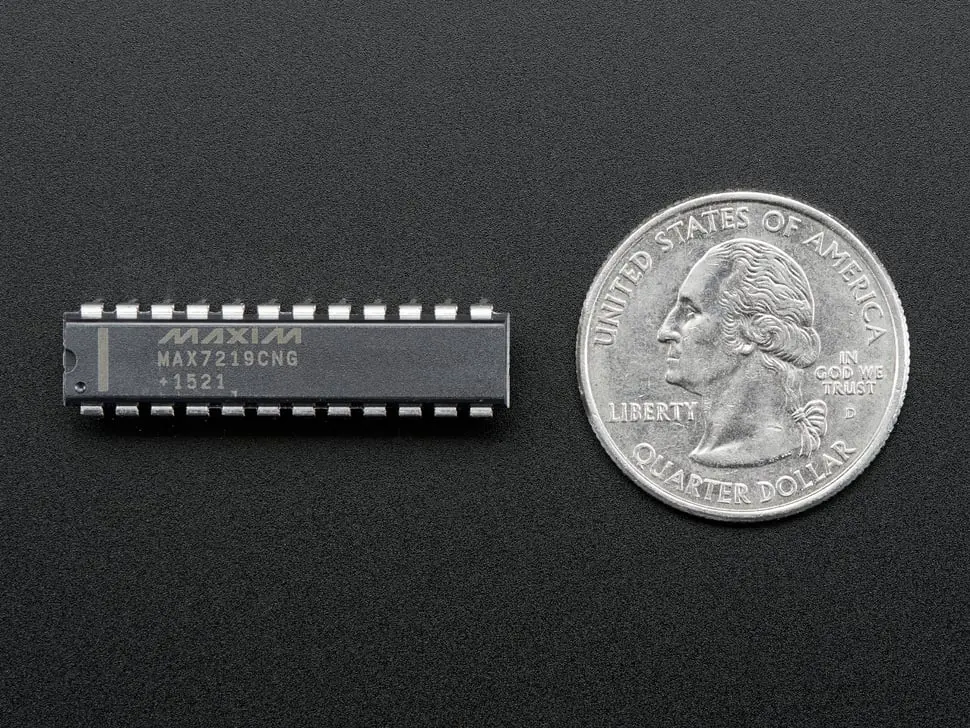

The MAX7219CNG is an efficient LED matrix and digit display driver chip, perfect for controlling up to 64 LEDs with just 16 pins by leveraging multiplexing techniques. It simplifies wiring and coding by managing all the control, refresh, and current regulation tasks for either an 8×8 LED matrix or 8 digits of 7-segment displays via a simple 4-pin SPI interface.
Key features include digital dimming, minimal wiring requirements with only one resistor to set LED current, and a thru-hole package suitable for breadboards or perfboards. This chip is ideal for anyone looking to quickly and easily drive numerous LEDs in their electronics projects without complex wiring or programming efforts.
- Drives up to 64 LEDs using multiplexing
- Supports 8×8 LED matrix or 8-digit 7-segment displays
- 4-pin SPI interface for easy serial control
- Current control with a single resistor
- Digital brightness dimming capability
- Thru-hole package for easy prototyping and socket use
For Arduino tutorials and CircuitPython drivers, visit the provided links. Datasheets and additional technical resources are also linked for advanced use.
