Description

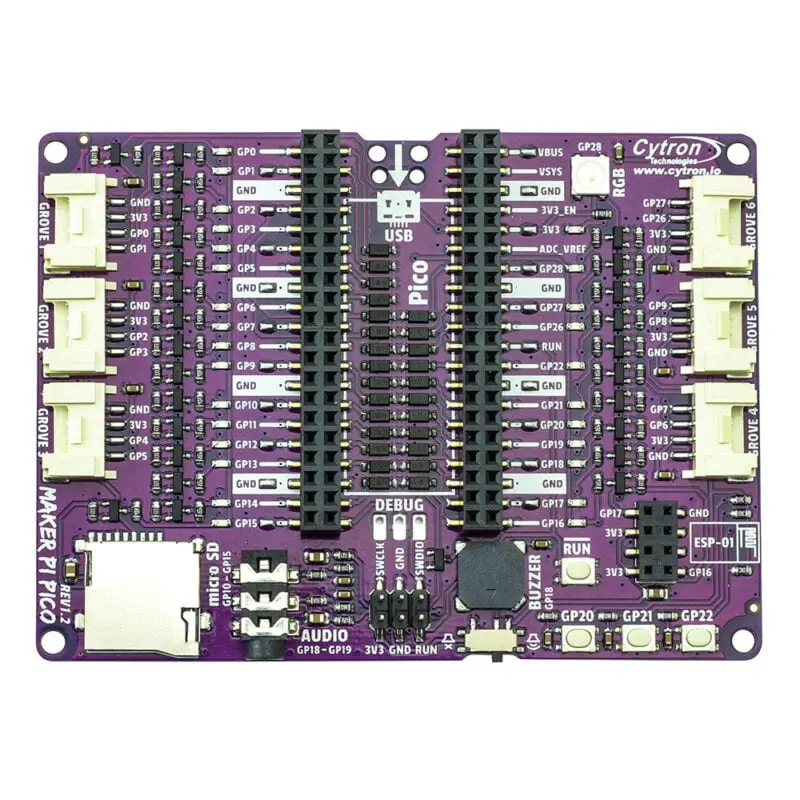

The Cytron Maker Pi Pico Base is a comprehensive accessory designed to simplify learning and usage of the Raspberry Pi Pico, making it ideal for beginners and advanced users alike. This all-in-one board provides easy access to all Pico features, troubleshooting enhancements, additional outputs, and components without the need for soldering.
Simply plug in a Raspberry Pi Pico (not included) and start learning or developing your projects immediately.
Key Features:
- No soldering required; ready to use straight out of the box.
- Easy access to all Raspberry Pi Pico GPIO pins via two 20-way pin headers with LED indicators for quick visual troubleshooting.
- Onboard components include 3 programmable push buttons, an RGB NeoPixel LED, piezo buzzer, 3.5mm stereo audio jack, micro-SD card slot, ESP-01 socket, and 6 Grove ports for sensor connectivity.
- Compatible with coding languages such as MicroPython, CircuitPython, and C/C++.
- Supports development with popular editors including MU and Thonny.
- Comes with ample example code to help beginners get started quickly.
Technical Specifications:
- Dimensions: 94mm (Length) x 68.6mm (Width)
- Connectivity: USB via Raspberry Pi Pico (sold separately)
Includes:
- 1 x Maker Pi Pico Base (without Pico)
Requirements:
- Raspberry Pi Pico with pre-soldered headers (not included)
- USB lead (Type A to Micro B)
Resources & Documentation:
- Maker Pi Pico Datasheet
- Maker Pi Pico Rev1.2.0 Schematic
- Maker Pi Pico Demo & Example Code
- Official Raspberry Pi Pico Documentation
- Additional SDK and datasheets available online for Raspberry Pi Pico and RP2040 microcontroller.
