Description
The ESP-32-based M5Stick-C is a compact and portable open-source IoT development board, powered by an ESP32 with Wi-Fi and Bluetooth® connectivity. It includes a USB interface, Li-Poly battery with charging circuit, a 1.14″ color TFT display, and integrated sensors such as IR transmitter, microphone, and a 6-DoF IMU sensor. The board features buttons and offers connectivity through Grove sensors or 0.1″ header sockets, ideal for ultra-small IoT projects or wearable devices.

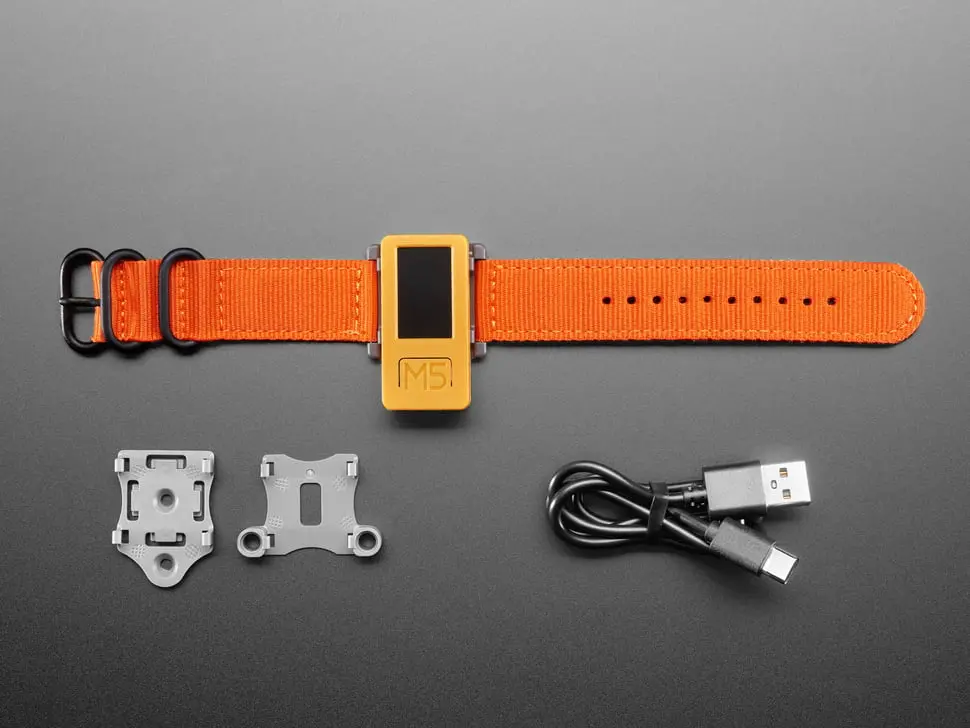

This kit includes:
- 1 x M5Stick-C Micro Core
- 1 x USB-C to USB-A cable
- PCB-to-watch adapter mounts and watch strap (color may vary)
M5Stick-C Plus upgrades include a bigger 1.14″ (135 x 240) LCD screen, built-in buzzer, and increased battery capacity from 95mAh to 120mAh, along with a more stable hardware design. It is compatible with the M5Stack ecosystem allowing for extended IoT development possibilities.
Features:
- ESP32-based Wi-Fi and Bluetooth support
- Built-in 6-Axis IMU sensor
- Red LED, IR transmitter, and Microphone
- Real-time clock (RTC)
- 1.14″ LCD color display with 135 x 240 resolution
- Built-in Lithium Polymer Battery (120mAh)
- Extendable socket for sensor and module expansion
- Built-in passive buzzer
- Multiple development platform support: UIFlow, MicroPython, Arduino, .NET nanoFramework
- Wearable and wall-mountable design
For documentation and tutorials, visit the M5Stack official website.
