Description
The ATOM Matrix is the most compact development board in the M5Stack series, measuring only 24 x 24mm. It features the powerful ESP32-PICO-D4 chip with integrated WiFi, Bluetooth®, and 4MB of SPI flash memory. This tiny powerhouse provides more GPIO pins, making it ideal for embedded device development.

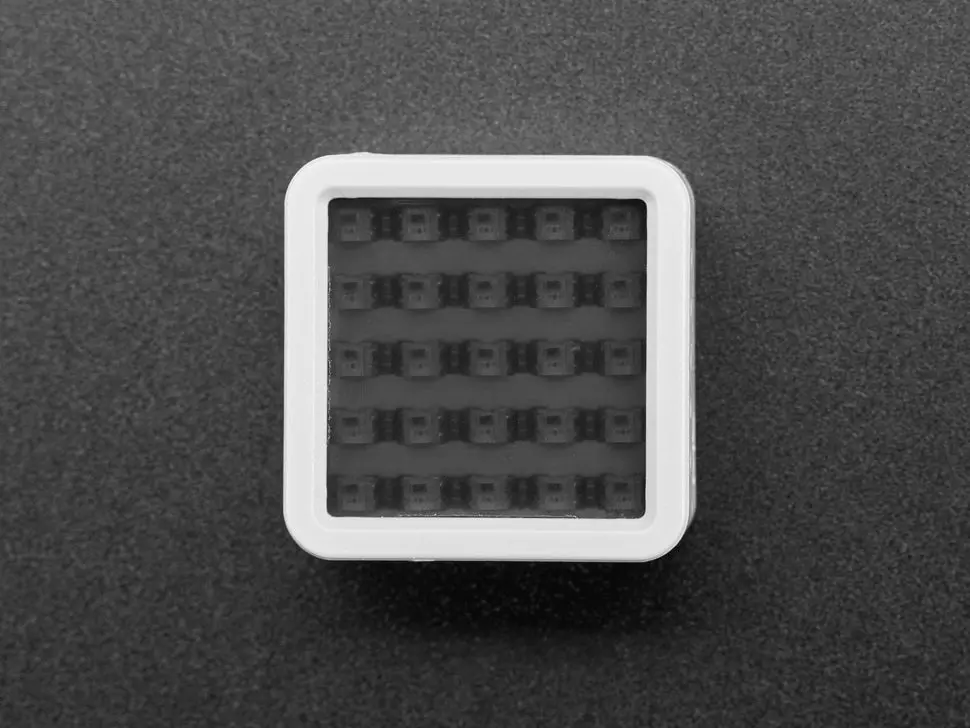

The board includes a 5×5 RGB LED matrix panel, an infrared LED, a built-in MPU6886 IMU sensor, and a Grove/Stemma-compatible JST 2-PH interface. A programmable button is conveniently located below the LED matrix for user input. It is powered via a USB Type-C port and includes a mounting hole for easy installation.
Note that this product is the ATOM Matrix board only; no additional cables or batteries are included.
Features
- ESP32 PICO-based chip with WiFi and Bluetooth®
- Programmable button for versatile input
- 5×5 WS2812B RGB LED matrix panel
- Infrared transmission LED
- MPU6886 IMU sensor
- Extendable pins and mounting holes
- Programming platforms: Arduino, UIFlow
Technical Specifications
- Processor: ESP32 240MHz dual-core, 600 DMIPS, 520KB SRAM, dual-mode Bluetooth®
- Flash Memory: 5MB
- Power: 5V @ 500mA via USB-C
- Ports: USB-C x1, Grove (I2C + I/O + UART) x1
- GPIO Pins: G19, G21, G22, G23, G25, G33
- RGB LEDs: WS2812B x 25
- Sensor: MPU6886 IMU
- Infrared LED for transmission
- Antenna: 2.4G 3D antenna
- Operating Temperature: 0°C to 40°C (32°F to 104°F)
- Dimensions: 24 x 24 x 14 mm
- Weight: 14g
- Case Material: PC Plastic
For more information, see the official M5Stack ATOM Matrix documentation.
