Description

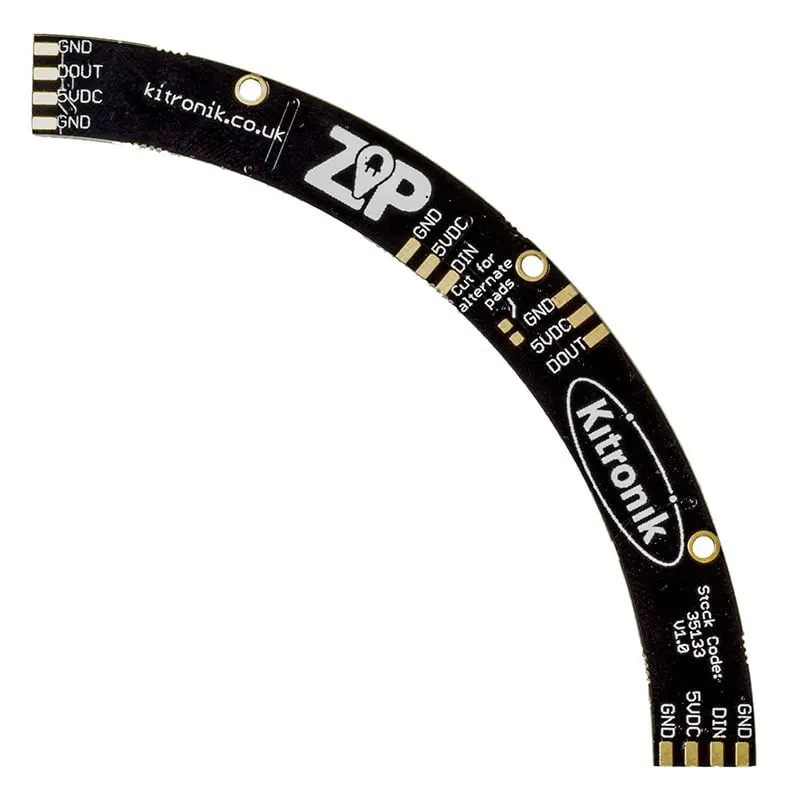

The Kitronik ZIP Arc features 15 individually addressable RGB LEDs based on the WS2812B LED, allowing for vivid and customizable lighting effects. Each LED can be independently controlled, creating a full spectrum of colors with 16,777,216 possible outputs. The 3-wire connection simplifies wiring, and multiple arcs can be connected together to create longer LED strings or a complete circle of lighting.
- Simple 3 wire connection for all LEDs.
- Compatible with any WS2812B driver code.
- Programmable via Microsoft PXT Editor for the BBC micro:bit.
- Integrated reset circuit for stable operation.
- Connect up to four arcs together to form a circle of 60 LEDs.
Dimensions:
Length: 102.8mm
Width: 10.2mm
Height: 3mm
PCB Height: 1.5mm
Inner Radius: 62.5mm
Outer Radius: 72.7mm
