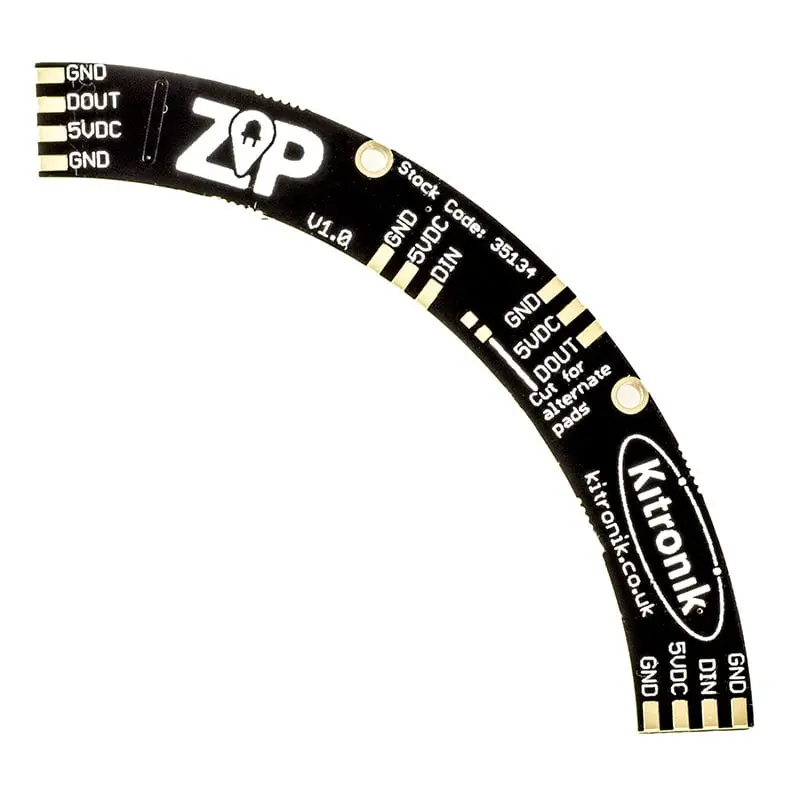

Kitronik ZIP Arc 12-LED Circular Ring

Description

The Kitronik ZIP Arc – 12 ZIP LEDs features 12 individually addressable RGB LEDs based on the WS2812B part, allowing full control of colors and brightness for each LED. The LEDs are connected with a simple 3-wire bus, supporting up to four arcs connected together forming a 48 LED circle. Compatible with any WS2812B driver code including the Microsoft PXT Editor for the BBC micro:bit.

• Simple 3 wire connection for all LEDs.
• Compatible with any WS2812B driver code.
• Programmable with Microsoft PXT Editor for BBC microbit.
• Integrated reset circuit.
• Can connect four arcs to form a 48 LED circle.

Contents:

• 1 x Kitronik Medium ZIP Arc

Dimensions:

• Length: 69.6mm
• Width: 10.2mm
• Height: 3mm
• PCB Height: 1.5mm
• Inner Radius: 49.2mm
• Outer Radius: 59.4mm
