Kitronik Servo Control Board for BBC micro:bit

Description

Bring your imagination to life with the Kitronik :CREATE Simple Servo Control Board for BBC micro:bit, offering simple and uncluttered control of up to 3 servos. Featuring an edge connector for the micro:bit to simply slot into, this board also includes 6 croc-clippable pads for adding additional devices.

• Simple interface for BBC micro:bit to control up to 3 servos.
• Edge connector for micro:bit attachment.
• Six croc-clippable pads for P0, P1, P2, 3.3V, GND, and an external switch (Switch A).
• Power switch to turn servos and micro:bit on or off.
• Power LED indicator.

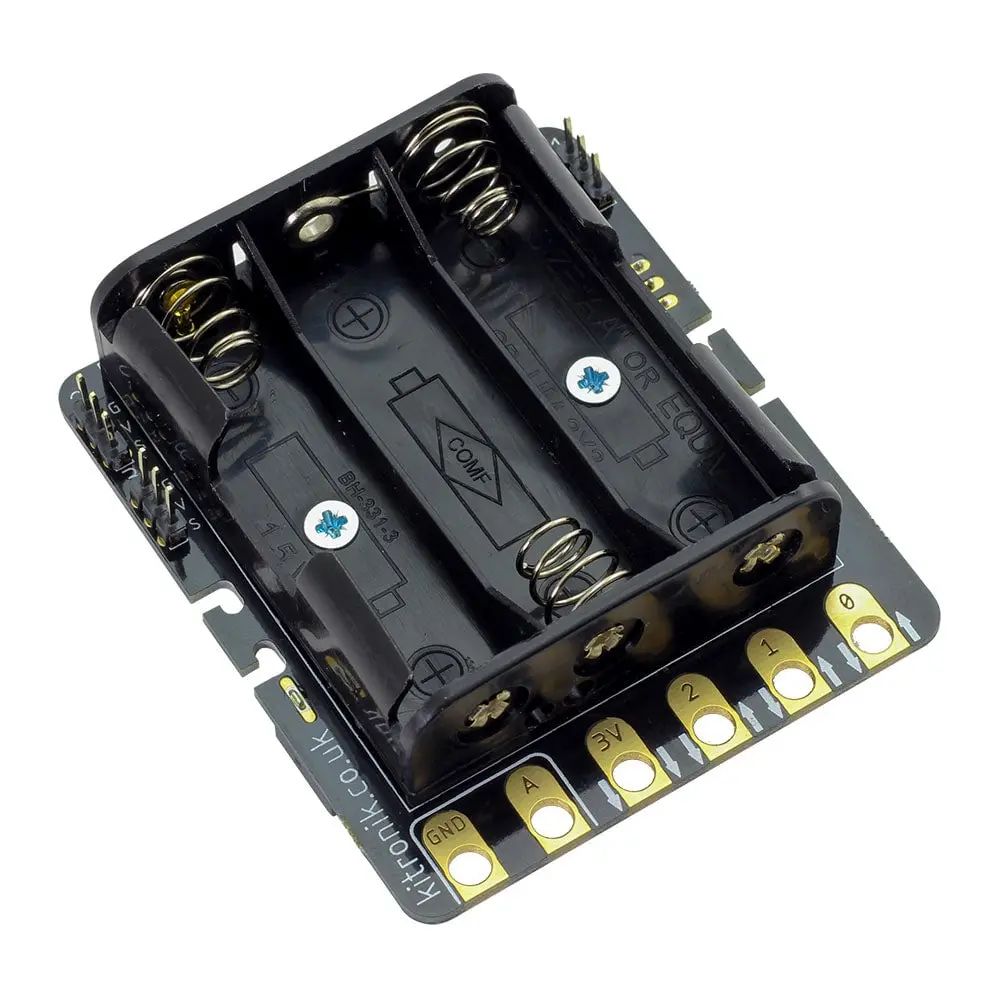

• Pre-fitted battery cage for 3x AA batteries to power servos and the micro:bit.
• Mounting lugs designed for elastic bands for tool-free connection.
• Compatible with MakeCode via custom blocks and MicroPython with available example code.

The board is powered by 3x AA batteries (not included) with an attached battery cage and regulated to supply the micro:bit. It includes mounting lugs for easy project integration.

Specifications:

• Length: 50mm
• Width: 70mm
• Max Height: 29mm
• PCB Thickness: 1.6mm

Contents:

• 1 x Kitronik :CREATE Simple Servo Control Board

Requires:

• BBC micro:bit (v1 or v2)
• 3 x AA Batteries
• USB Cable
• Servo Motors (360 degree continuous or 180 degree servos)

For coding, custom blocks are available in MakeCode and example MicroPython code is on GitHub with supporting datasheets provided.
