Description

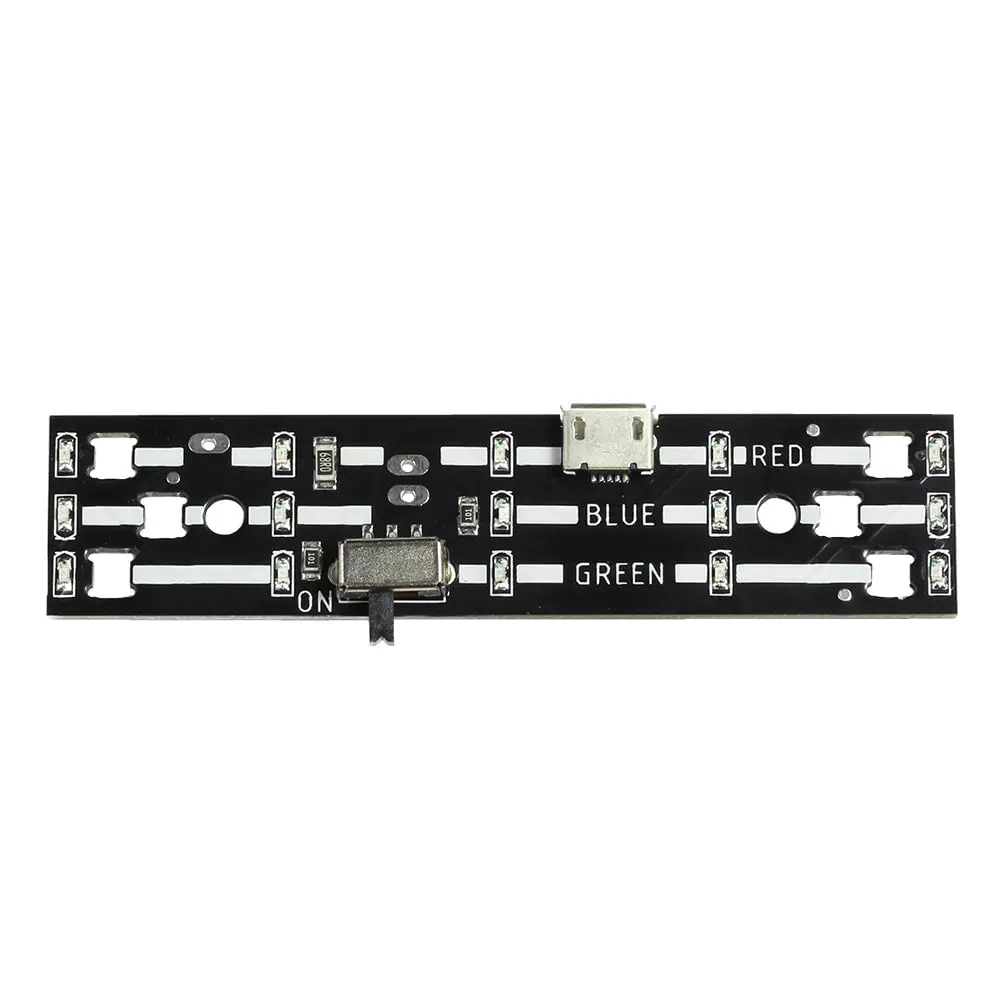

The Kitronik Tricolour LED board is a pre-built strip board designed for low-power lighting displays, such as edge-lit signs and illustrations.
Designed to draw under 100mA, it is suitable for use with computer USB ports. It features 15 LEDs – 5 each of green, blue, and red – arranged in three colour rows down the board.
The PCB measures approximately 75mm long and 17mm wide, with two M3 mounting holes and alignment holes to fit 3mm acrylic. It includes an onboard on/off switch and pads for connecting a remote switch.
Power is supplied via a Micro USB power connector or through solder pads for non-USB power sources (maximum 5.5V).
Features:
- Ideal for edge-lit signs, static displays, and illustrations
- 15 LEDs: 5 green, 5 blue, and 5 red
- Low current design (under 100mA)
- PCB size approximately 75mm x 17mm
- Two M3 mounting holes
- Onboard on/off switch and remote switch pads
- Power via Micro USB or solder pads
- Compatible with multiple boards controlled by one switch
Contents:
- 1 x Kitronik Tricolour LED board
Dimensions:
- Length: 75mm
- Width: 17mm
- Max Height: 7mm
Requires:
- USB Power Lead or USB Power Supply (sold separately)
Specifications:
- Number of LEDs: 15 (5 each Red, Green, Blue)
- Operational Supply: 5V via micro USB connector or solder pads
- Forward Current: ~100mA
- Mounting: 2 x M3 holes
- On/Off switch: Yes
