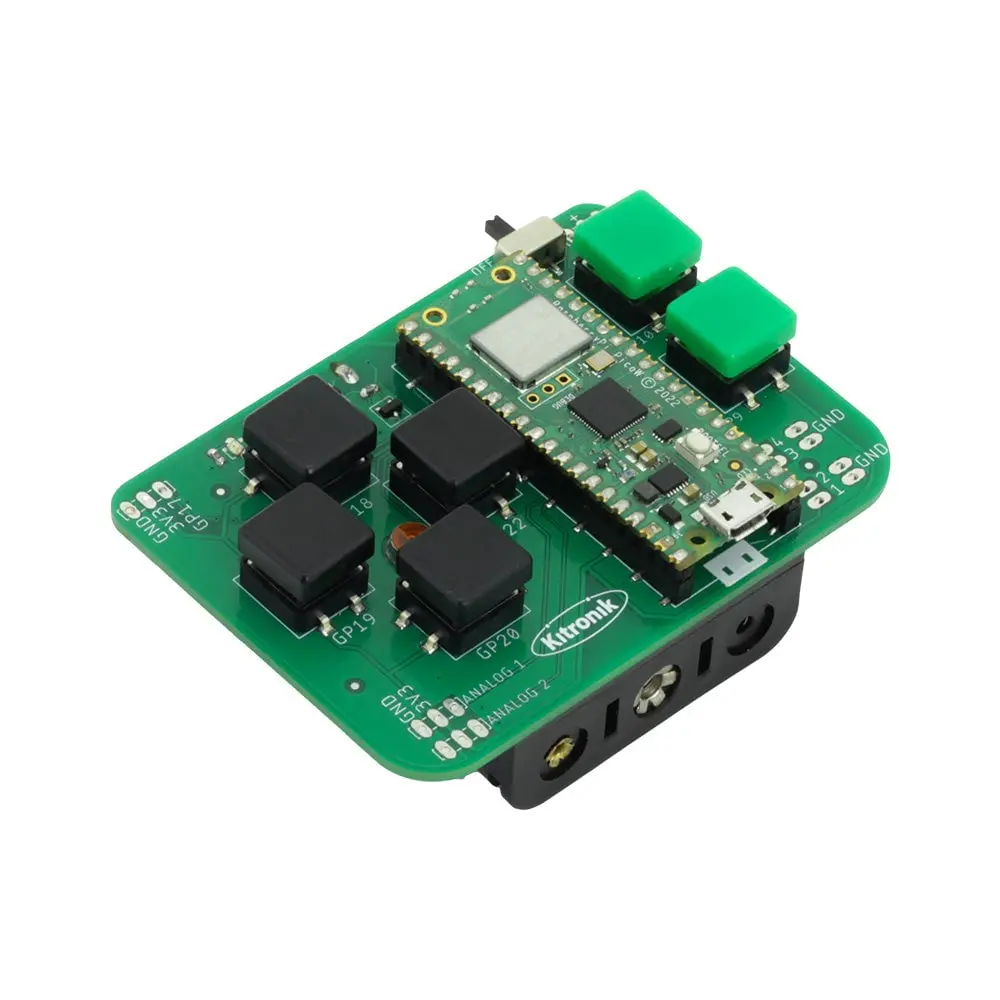

Kitronik Mini Controller – Compact Add-On for Raspberry Pi Pico

Description

The Kitronik Mini Controller for Raspberry Pi Pico is a versatile, programmable controller designed to enhance the Raspberry Pi Pico experience.

Features include a buzzer for audio feedback, 6 input buttons arranged in a gamepad layout (4 directional and 2 action buttons), and breakout pins including GP1, GP2, GP3, GP4, GP14, GP17, ADC1, and ADC2. The board also provides several 3.3V and ground pads, all on a 0.1″/2.54mm pitch.

This controller is ideal as a remote control for the Kitronik Autonomous Robotics Platform (Buggy) for Pico and is suitable for any Pico project or game requiring user input/control. It omits a screen to maintain a compact size and cost efficiency, making it perfect for Robotics where a display is not necessary.

The controller is powered via an integrated battery holder supporting 3 x AA batteries. To use, the Raspberry Pi Pico needs to be fitted with header pins and inserted firmly into the controller.

Kitronik provides a MicroPython module and sample code, available on their GitHub repository, simplifying integration.

Features:

• Programmable controller for the Raspberry Pi Pico.
• Compatible with Raspberry Pi Pico W with pre-soldered headers.
• Includes buzzer and 6 buttons for user input.
• Breakout pins for various GPIO and ADC inputs.
• Compact, screenless design for ease of use in robotics applications.
• Powered by 3 x AA batteries via onboard holder.
• Supported by MicroPython code and examples from Kitronik.

Contents:

• 1 x Mini Controller for Raspberry Pi Pico.

Dimensions:

• Length: 82.4 mm
• Width: 60 mm
• Height: 28.5 mm

Requires: Raspberry Pi Pico W with headers (sold separately), and AA batteries (3 x).

Resources:

• Datasheet PDF
• Wirelessly controlling Pico autonomous robotics platform
• MicroPython module and sample code repo
