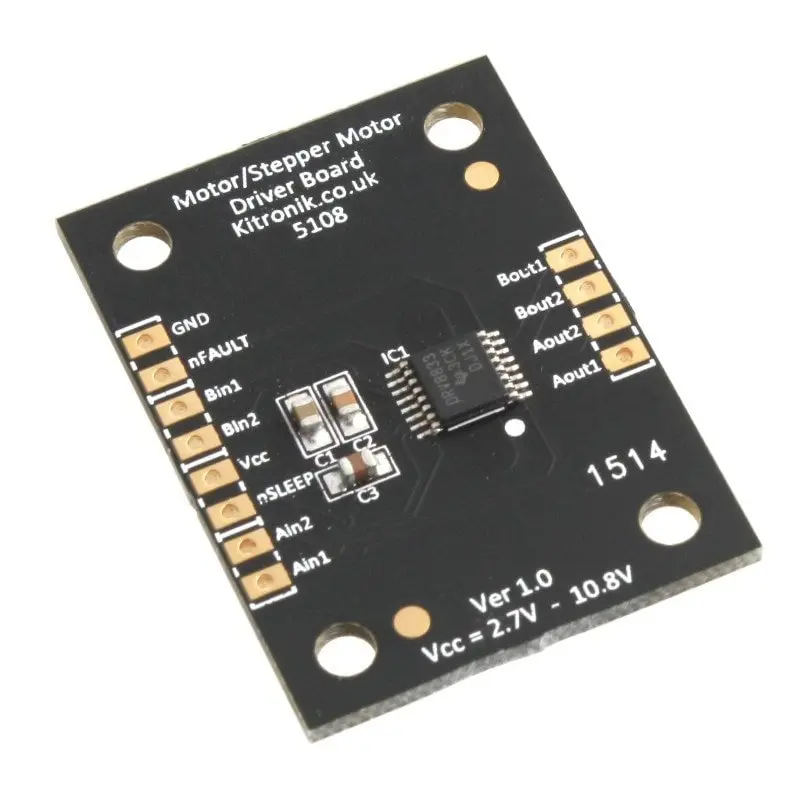

Kitronik Dual Motor Driver Board for Stepper and DC Motors

Description

The Kitronik Motor / Stepper Motor Drive Board uses the DRV8833 chip and allows control of up to 2 DC motors or 1 stepper motor via a microprocessor. It provides a suitable power supply that microcontrollers cannot directly provide, allowing motor control with digital outputs. The motor driver can operate on a wide voltage range from 2.7V to 10.8V and deliver up to 1.5A per output channel or 3A if both outputs are connected in parallel.

The board can be operated at 3V or 5V logic levels and supports half-stepping for stepper motors (but not micro-stepping).

Features:

• Controls two DC motors or one stepper motor
• 1.5A current per channel
• Supports half-stepping for stepper motors
• Wide power supply range: 2.7V to 10.8V
• Compatible with 3V or 5V microcontroller logic levels

Contents:

• 1 x Motor/Stepper Driver Breakout Board

Possible Applications:

• Robotics

Dimensions:

• Length: 38mm
• Width: 28mm
• Height: 3mm

Connections:

• Vcc: Supply Voltage (0-10.8V)
• GND: Ground
• nSLEEP: Sleep mode pin (low to enter sleep mode)
• xINx: Control logic inputs (AIN1, AIN2, BIN1, BIN2)
• xOUTx: Motor outputs (AOUT1, AOUT2, BOUT1, BOUT2)

Resources:

• Motor driver breakout guide (PDF)
• Motor driver example code (ZIP)
