Description
The Kitronik 5V Mini LED Lamp Module is a compact, fully assembled board ideal for designing low-power lighting enclosures such as desk lamps or accent lights. It features surface-mounted components including three white LEDs, and fits within a 20mm diameter space, perfect for discreet lighting solutions.

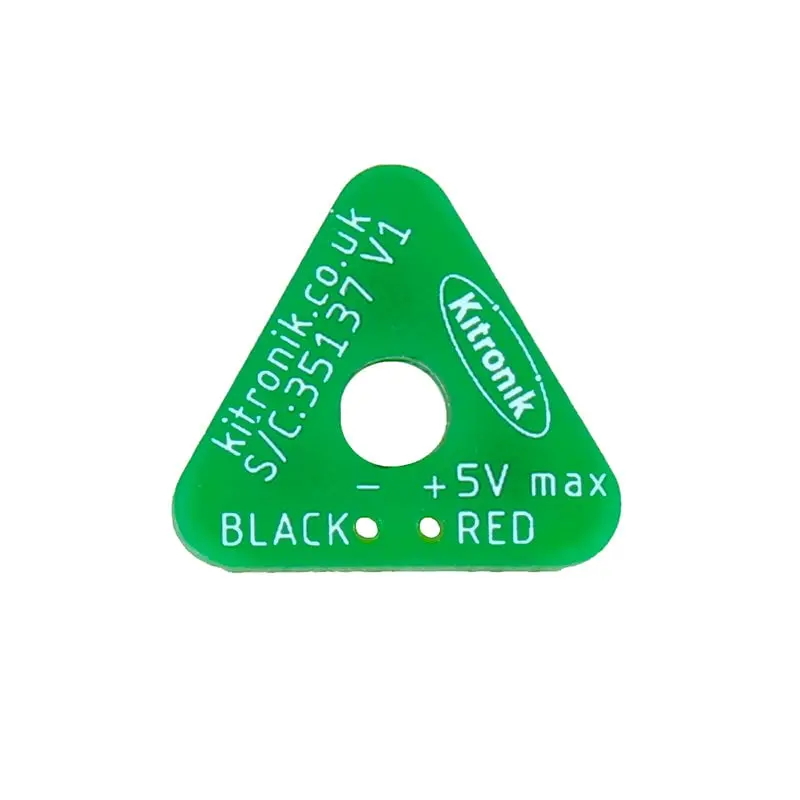

This triangular PCB is designed to operate well within the power output parameters of a typical USB port (5V and under 100mA), ensuring safe and efficient use. It includes two power connection pads with 2.54mm pitch compatible with standard pin headers, and a central M3 mounting hole for easy installation.
Features:
- Three white LEDs with luminous intensity of 4800mCd delivering bright, pleasant lighting.
- Compact triangular PCB fitting inside a 20mm diameter, ideal for space-conscious projects.
- Operates safely under 100mA, compatible with USB power sources.
- Power connection pads at 2.54mm pitch for easy wiring.
- Single central M3 (4.5mm) mounting hole for secure mounting.
Specifications:
- Operational Supply: 5V maximum, 55mA current draw.
- Forward Voltage per LED: 2.8V minimum to 3.6V maximum.
- Forward Current per LED: 18mA at 3.2V.
- Luminous Intensity: 4800mCd.
- Color Temperature: 6500K (white light).
- Number of LEDs: 3 white LEDs.
- Mounting Hole Diameter: 4.5mm (M3 screw compatible).
- Pcb Height: 1.6mm; Max Height: 3mm.
- Pad Pitch: 2.54mm.
Dimensions:
- Diameter: 20mm
- Mounting hole: M3, 4.5mm diameter
Contains: 1 x 5V Mini LED Lamp Module board
Note: Although pre-assembled, soldering the power connection may be required. Care must be taken to avoid damaging the surface mount LEDs when soldering.
