JTAG 2×10 (2.54mm) to SWD 2×5 (1.27mm) Conversion Adapter Board

Description

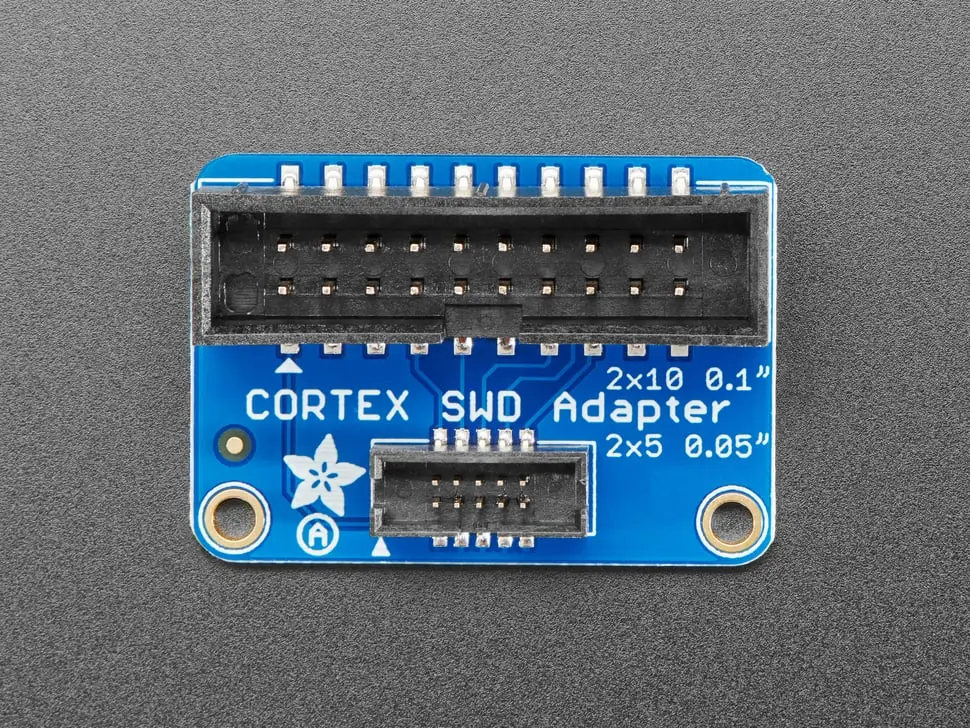

This adapter board is designed for adapting a ‘classic’ 2×10 (0.1″/2.54mm pitch) JTAG cable to a slimmer 2×5 (0.05″/1.27mm pitch) SWD cable.

It is especially helpful for using products like the JTAGulator or SEGGER J-Link with tiny boards that use the 10-pin SWD programming connector.

This product is the adapter board only and does not include cables. It enables JTAG debugging on boards that cannot support 2×10 cables.

For use with the SWD cable, see our 10-pin 2×5 Socket-Socket 1.27mm IDC (SWD) Cable.

• Dimensions with components: 34mm x 24mm x 12mm (1.3″ x 0.9″ x 0.5″)
• Weight: 5.7g
• EagleCAD PCB Files on GitHub
• Fritzing object available in Adafruit Fritzing library
