JST-PH 2-Pin SMT Right-Angle Switched Breakout Board

Description

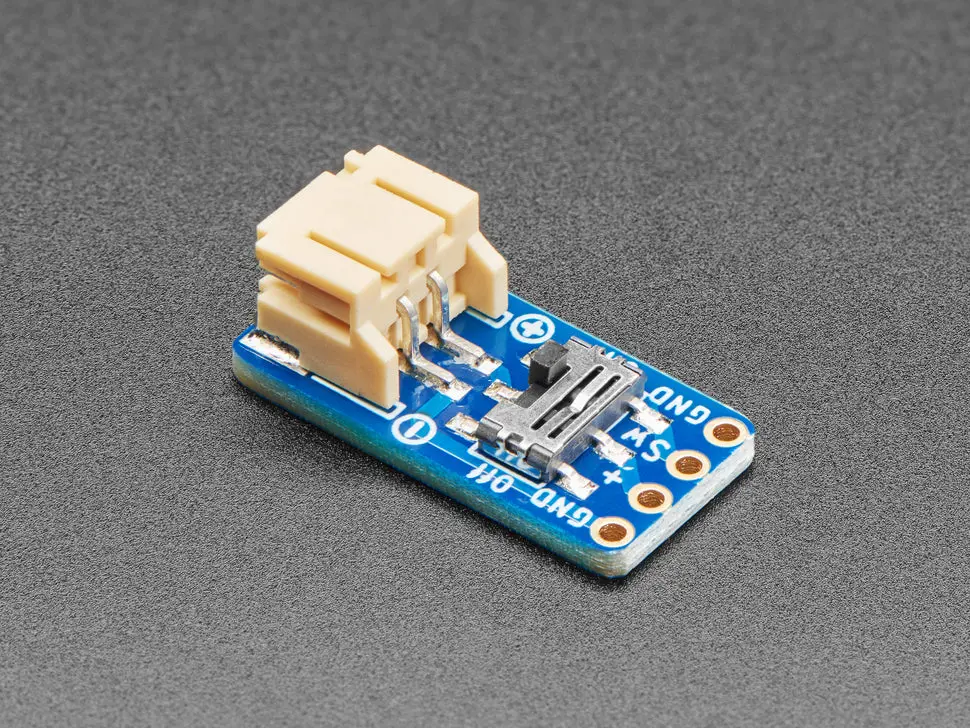

This switched JST connector breakout board is designed for quick prototyping with LiPoly and LiIon batteries. It features a genuine JST PH 2-pin connector paired with a slide switch rated up to 600mA, soldered onto a breadboard-friendly breakout board.

Key features include two ground pins, one switched power pin, and one always-on pin, making it compatible with various battery packs and holders such as 1-cell LiPoly and LiIon batteries, 6V coin cell holders, and 3xAAA battery packs. The connector color may vary between off-white and black.

• Genuine JST-PH 2-pin connector with right angle SMT footprint.
• Integrated slide switch capable of switching up to 600mA.
• Breadboard-friendly breakout with easy access to one switched and one always-on power pin.
• Compatible with Adafruit’s LiPoly and LiIon batteries and battery holders.
• Compact dimensions: 21mm x 10mm x 2mm; Height with JST: 7.3mm.
• Lightweight at 1 gram.
• Datasheets and EagleCAD PCB files available.
