Description
The IBDAP – CMSIS-DAP JTAG/SWD Debug Adapter Kit from armstart is a vendor independent debug interface that connects to your PC over USB and targets ARM devices via JTAG/SWD pins. This kit supports debugging features such as stepping, breakpoints, watch points, and firmware downloads. Besides debugging, it can be used as a general development board featuring an ARM Cortex M0 processor.

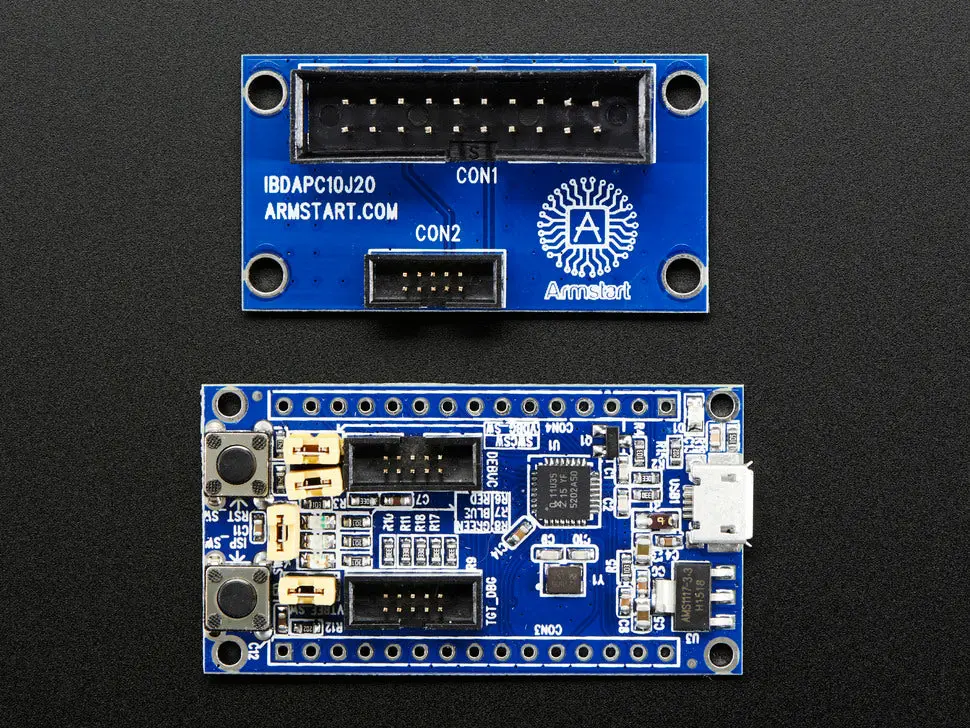

Included in the kit are a fully assembled CMSIS-DAP debugger board, a 2×5-SWD-to-2×10-JTAG adapter, and a SWD 2×5 0.05″ pitch connector cable. This kit is compatible with most commonly used debugging tools and supports mbed programming.
- NXP LPC11U35FHI33/501 ARM Cortex M0 48MHz processor
- 64kB Flash memory, 12kB RAM, 2kB EEPROM
- 1 x USART, 1 x I2C, 2 x SPI interfaces
- 1 x USB 2.0
- 8 x 10-bit ADC channels
- 26 x GPIO pins
- IBDAP board size: 27mm x 51mm x 11mm
- Adapter board size: 24mm x 43mm x 12mm
- Includes 10-pin JTAG cable, 20-pin to 10-pin JTAG adapter, and 40-pin break-apart male header
Note: The SWD cable length is approximately 156mm (6.1 inches).
