Description
Why?

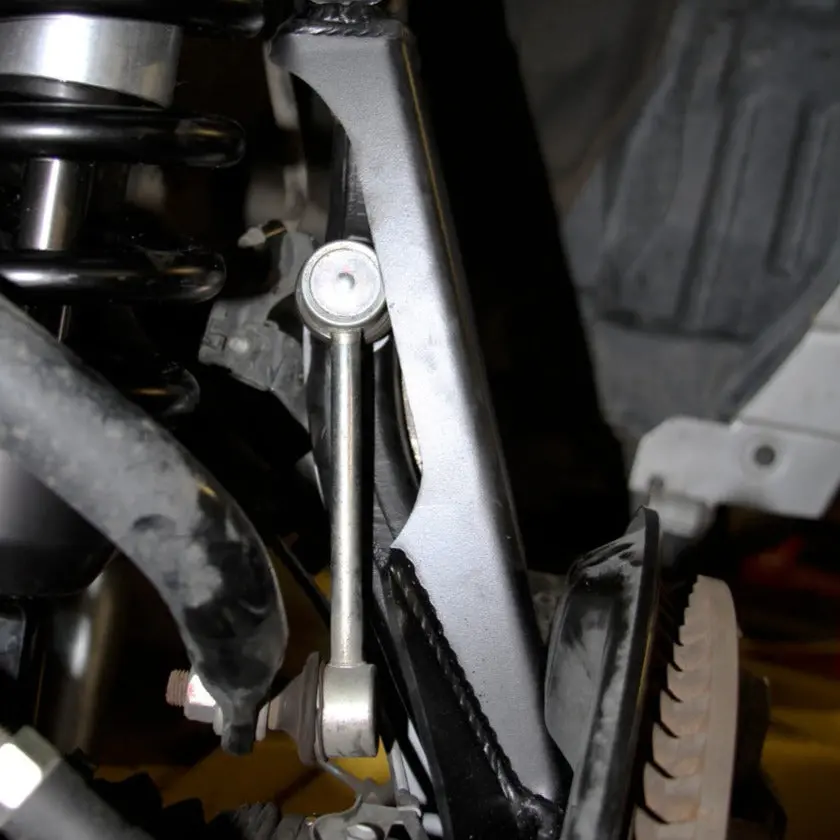

These gussets were designed to reinforce a known weak link on your Toyota. Unexpected harsh front impacts at high speed or while under braking can cause catastrophic damage to your factory spindle/knuckle. These weld-on gussets were originally designed for the US military and their 8000 lb. body armored vehicles. Don’t get stranded on the trail. Protect your OE parts.
Features:
- Must have reinforcement for anyone who wants to play in the dirt!
- Strengthens spindle uprights and prevents the knuckle from being damaged during hard impacts.
- Retains the factory sway bar and includes an additional steering arm gusset.
- 1/8” prebent laser cut mild steel brackets.
- Welding and grinding are required to install.
- Factory spindles are forged, not cast and gussets can be MIG or TIG welded directly to them.
- Trucks running factory back spacing wheels must run 1.25” wheel spacers. To clear without spacers, aftermarket wheels must have a maximum backspace of 4.5” for 16” wheels and 4.75” for 17” wheels.
- Kit includes 1 pair of gussets for driver and passenger side.
- Designed for use with TC uni-ball upper control arms. May not be compatible with other manufacturers’ control arms and hardware.
- These are model specific. Check your year, make & model.
