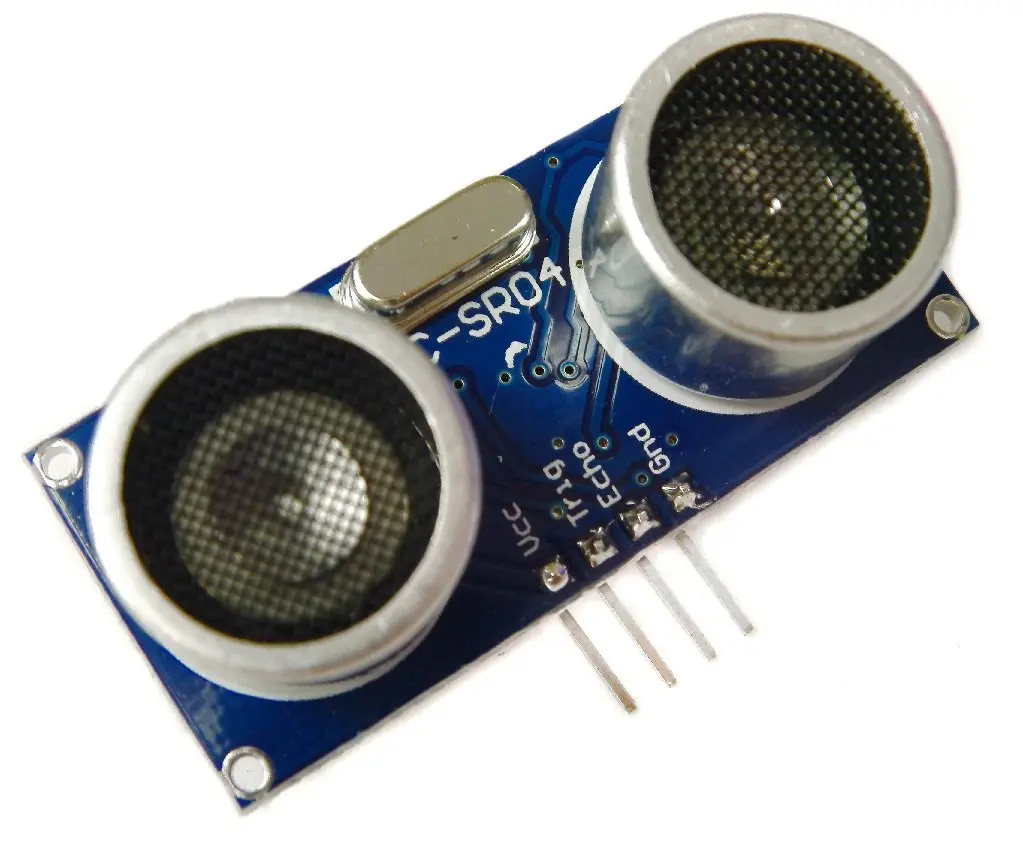

HC-SR04 Ultrasonic Distance Sensor Module

Description

This is the HC-SR04 ultrasonic ranging sensor. This economical sensor provides 2cm to 400cm of non-contact measurement functionality with a ranging accuracy that can reach up to 3mm. Each HC-SR04 module includes an ultrasonic transmitter, a receiver and a control circuit.

There are only four pins that you need to worry about on the HC-SR04: VCC (Power), Trig (Trigger), Echo (Receive), and GND (Ground). You will find this sensor very easy to set up and use for your next range-finding project!

Features

• Measures the distance within a wide range of 2cm to 400cm.
• Stable performance.
• Accurate distance measurement.
• High-density.
• Small blind distance.

Specifications

• Operating Voltage: 5V DC
• Operating Current: 15mA
• Measure Angle: 15°
• Sonar Sensing Range: 2-400 cm
• Max. Sensing Range: 4500 cm
• Frequency: 40 KHz

Kit Content

• 1 x HC-SR04 Ultrasonic Sensor
