FS90 Mini Servo with 180° Rotation and Durable Resin Gears

Description

This Fitec Mini Servo is a great value, multi-purpose micro size servo ideal for use with micro-controller systems like the BBC micro:bit, Arduino, Raspberry Pi, and PICAXE. Its miniature size makes it suitable for radio-controlled models as well.

The servo can rotate approximately 180 degrees, 90 degrees in each direction, and comes with mounting screws and a range of horns to suit most applications. It is controlled using standard servo code, hardware, or libraries, making it perfect for beginners wanting to make things move without the need for a motor driver board.

Features:

• Great value miniature Fitec servo.
• Control horns included.
• Operating voltage between 4.8V – 6V.

Pin Assignments:

Red Wire: Positive connection
Brown Wire: Ground connection

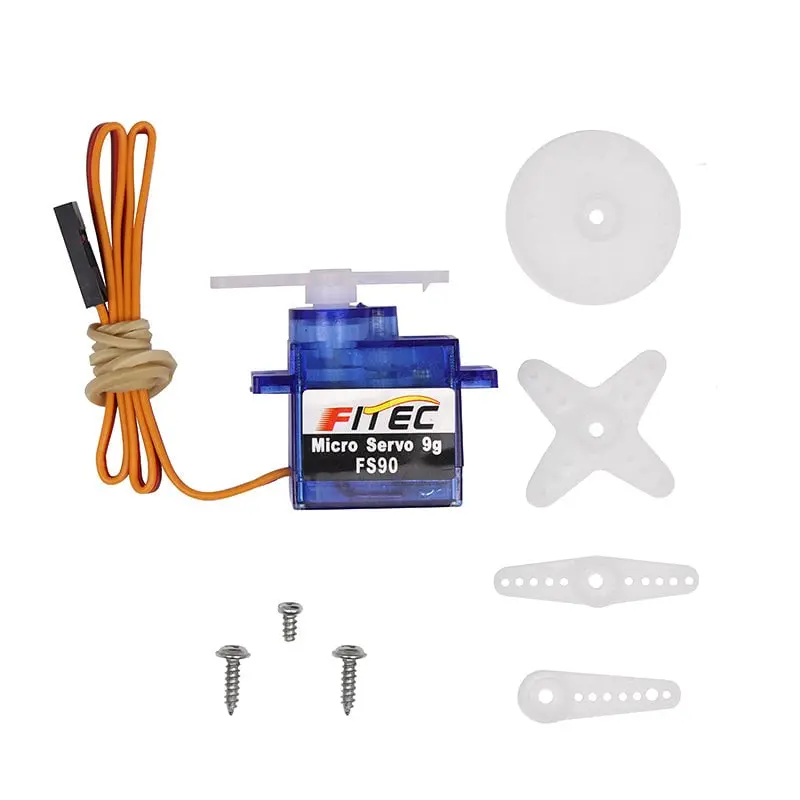

Contents:

• 1 x Fitec Mini Servo
• 2 x Mounting screws
• 3 x Control horns

Dimensions:

• Length: 23.2mm
• Width: 12.5mm
• Height: 22mm

Technical Information:

• Length: 22mm
• Width: 12mm
• Height: 31mm
• Stall torque: 1.8kg/cm (4.2V)
• Operating speed: 0.3s/60° (4.2V)
• Operating voltage: 4.8V – 6V
• Temperature range: 0° to 55°C
• Dead band width: 10 microseconds
