Description

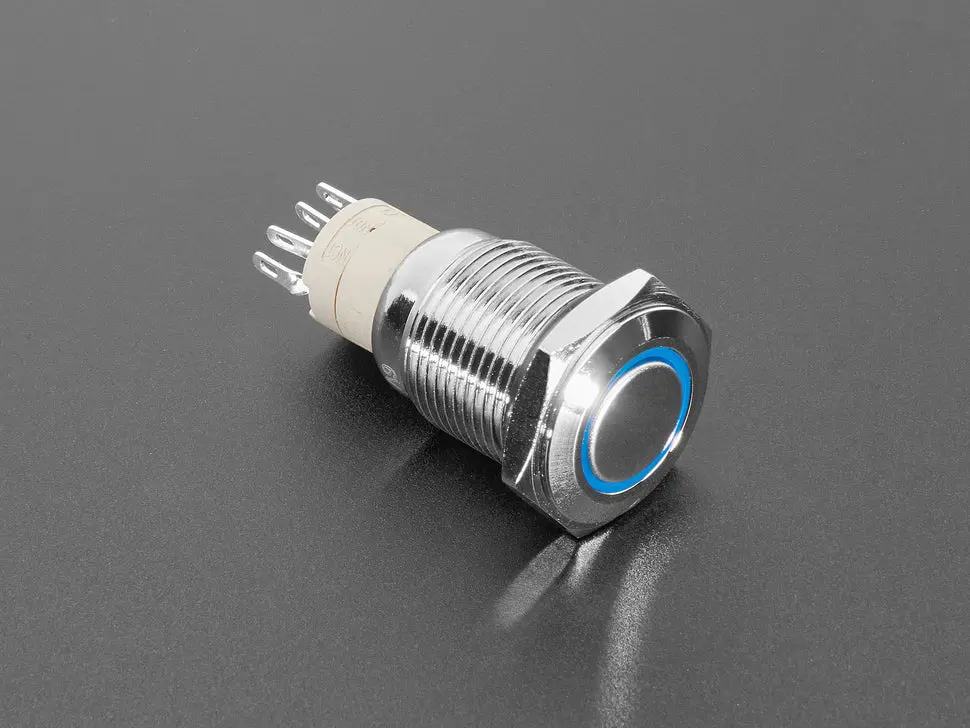

These chrome-plated metal buttons are rugged and visually striking with a blue plastic LED ring. Drill a 16mm hole into any material up to 1/2″ thick to install easily. The button features a rubber gasket to keep water out.
The switch has a flat metal actuator surrounded by a blue LED ring. The back has 3 contacts for the button (common, normally-open, normally-closed) and 2 for the blue LED ring (+ and -). Connect 3 to 6V to power the LED with a built-in resistor; for higher voltages, add a 470 ohm resistor to keep LED current around 20mA.
This is an on/off switch button: pressing once connects the normally-open contact to the common contact and the button stays pressed; pressing again releases it. Switch and LED are separately wired, allowing flexible configurations.
- Drill hole diameter: 16mm
- Switch rating: 3A / 250VDC
- Switch contacts: 1 NO, 1 NC
- Material: Chrome-plated brass
- Contact resistance: < 50 mOhm
- Insulation resistance: > 1000 Mohm
- Operating temperature: -20°C to +55°C
- Mechanical life: > 500,000 cycles
- Electrical life: > 50,000 cycles
- Panel thickness supported: 1-13mm
- Operating pressure: 1.5 – 2.5 N
- Operating stroke: 2mm
- LED lamp rated voltage: 6V
- Weight: 13.9g
Compatible with Arcade Button Quick-Connect Wire Pairs – 0.11″ (10 pack).
