Description
These chrome-plated metal buttons are rugged and visually appealing. Simply drill a 16mm hole into any material up to 1/2″ thick to fit this pushbutton, which includes a rubber gasket to keep water out of the enclosure.

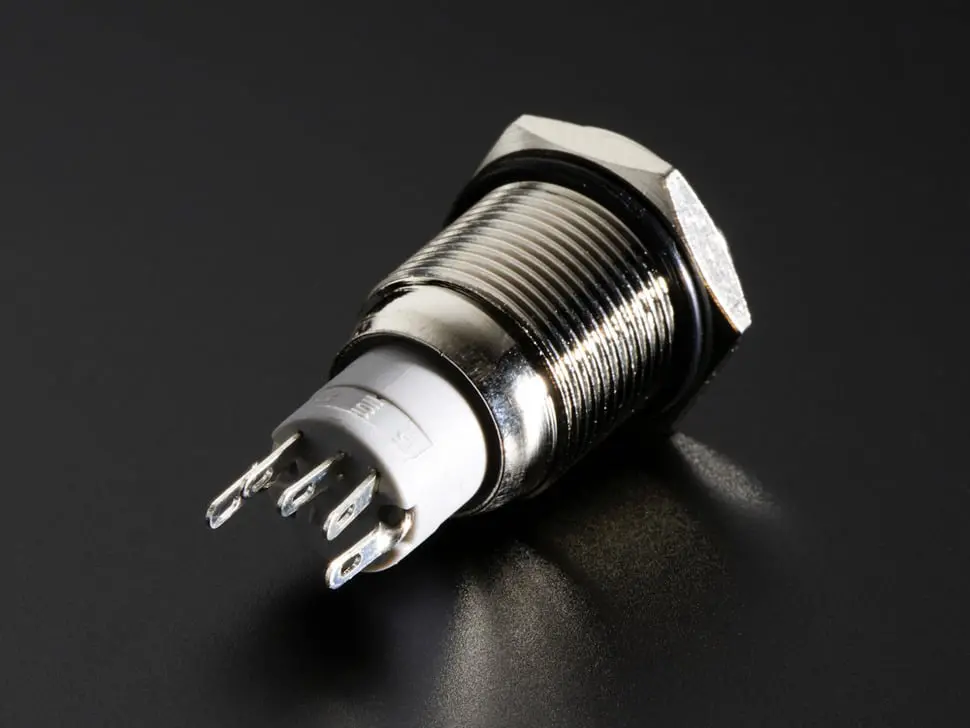

The button features a flat metal actuator on the front, surrounded by a white plastic LED ring. On the back are 3 contacts for the button (common, normally-open, and normally-closed) and 2 contacts for the white LED ring (+ and -). The LED can be powered by 3 to 6V with a built-in resistor for safe illumination. For higher voltages like 12V or 24V, add a 470 ohm resistor in series to maintain a current around 20mA.
This is a momentary pushbutton: pressing it shorts the normally-open contact to common, and releasing it opens the contacts again. The switch and LED are separated for versatile wiring options.
- Drill hole diameter: 16mm
- Switch rating: 3A / 250VDC
- Switch contacts: 1 NO, 1 NC
- Material: Chrome plated brass
- Contact resistance: < 50 mOhm
- Insulation resistance: > 1000 Mohm
- Temperature range: -20°C to +55°C
- Mechanical life: > 500,000 cycles
- Electrical life: > 50,000 cycles
- Panel thickness supported: 1-13mm
- Operating pressure: 1.5 – 2.5 N
- Operating stroke: 2mm
- Lamp rated voltage: 6V
