Description
This Panel Mount 10K Dual Linear Potentiometer with On-Off Switch is a two-in-one component integrating a dual-ganged potentiometer and an on-off switch. It features a dual standard linear-taper 10K ohm potentiometer with a grippy shaft that is smooth and easy to turn without being too loose.
The on/off switch is located at the beginning of the shaft’s rotation and is open when twisted all the way to the left. Not breadboard-friendly due to close pin spacing; soldering wires or custom PCB design is recommended.

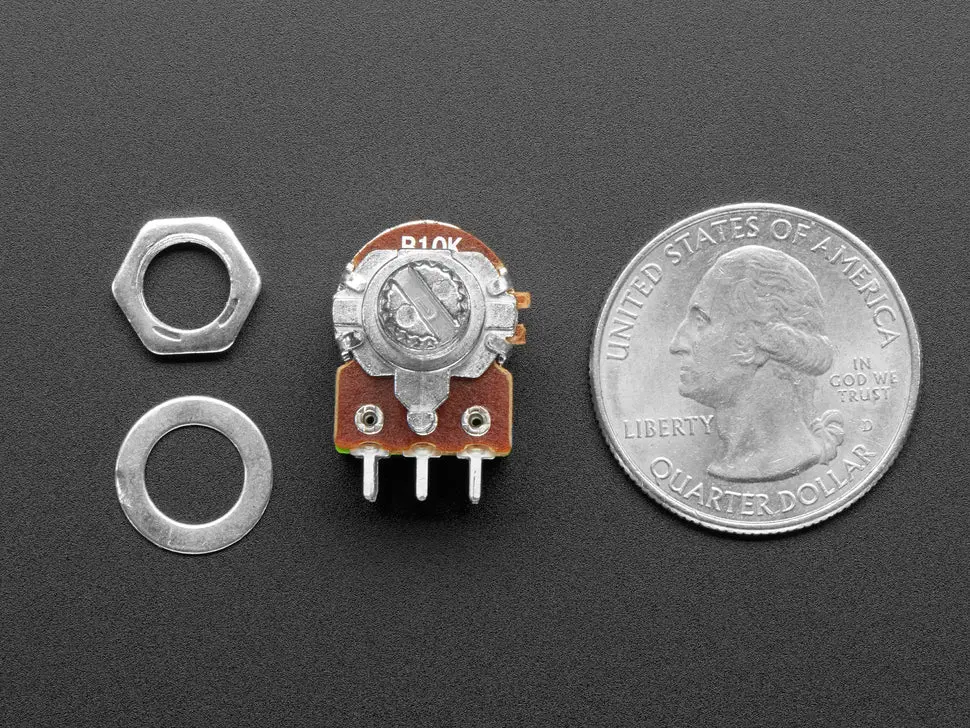

The potentiometer can be panel-mounted by drilling a hole in your project box, utilizing the included washer and hex nut for securing.
Features:
- 10K ohm dual linear potentiometer
- Integrated on-off switch
- Linear taper potentiometer
- 100,000 cycle life
- 16mm body size
- 300° rotational travel
- Static stop strength: 90 oz-in
- Rotational torque: 0.5 to 1.25 oz-in
- Includes washer and hex nut for mounting
Technical Specifications:
- Body size: 16mm
- Product dimensions: 32.0mm x 20.0mm x 14.0mm (1.3″ x 0.8″ x 0.6″)
- Product weight: 7.6g (0.3 oz)
Note: Pins spacing is approximately 0.15″ which is not suitable for breadboard use.
Download datasheet
