Description

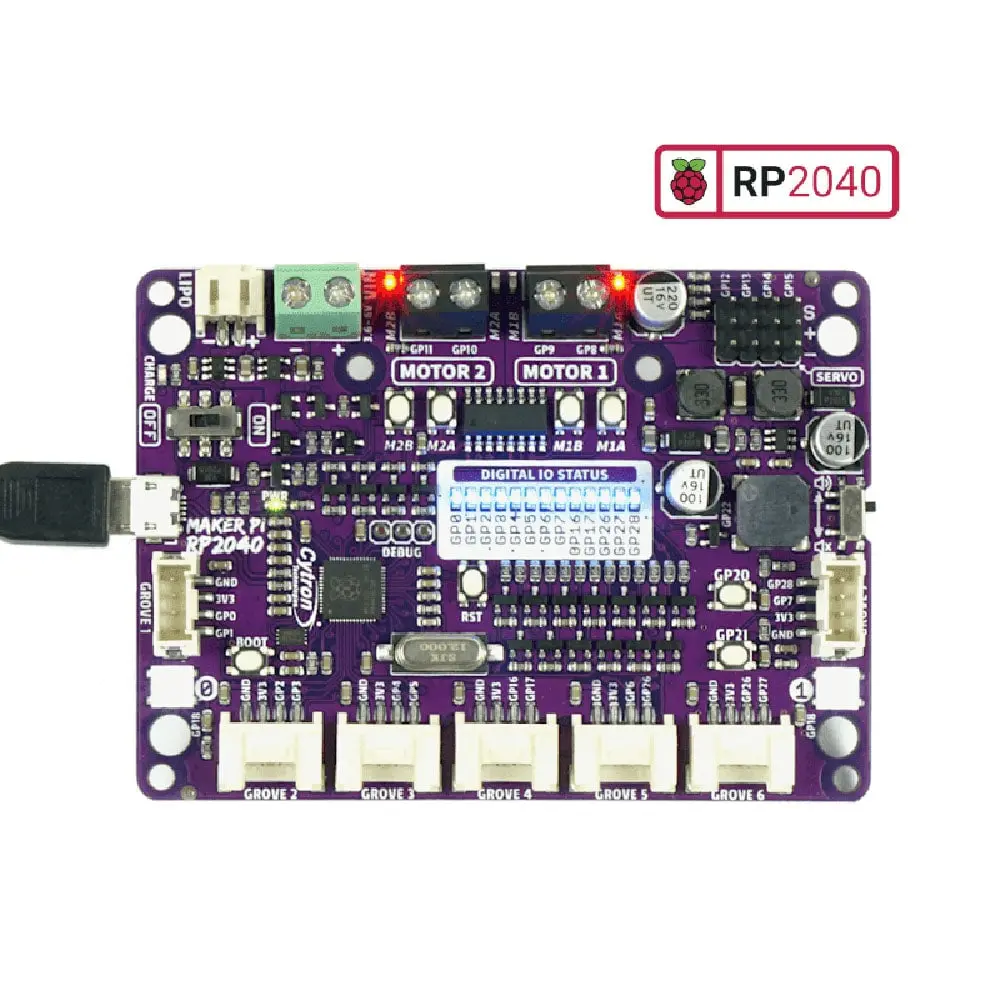

The Cytron Maker Pi RP2040 is a versatile robot controller board powered by the Raspberry Pi RP2040 microcontroller. Designed for robotics, buggy, and movement-based projects, it features a dual-channel DC motor driver, 4 servo connectors, and 7 Grove I/O connectors, providing flexible control options.
This board supports control of 2 DC motors or 1 bipolar/unipolar stepper motor, with continuous current of 1A per channel at 3.6V to 6V. It includes built-in quick test buttons, motor output status LEDs, and various visual indicators including 13 GPIO LEDs, 2 RGB Neopixels, a piezo buzzer with mute switch, and push buttons to facilitate easy interaction and troubleshooting.
Power can be supplied via USB 5V, single-cell LiPo/Li-ion battery, or VIN (3.6-6V) terminals with an onboard charger and an on/off switch. The board is compatible with the Raspberry Pi Pico ecosystem and comes preloaded with CircuitPython, making it simple to program and use immediately out of the box.
Features:
- Powered by Raspberry Pi RP2040 dual-core Arm Cortex-M0+ processor
- 264KB internal RAM and 2MB Flash memory
- Robot controller with 4 servo motor connectors, 2 DC motor driver channels
- Automatic power source selection (USB, LiPo battery, VIN)
- Built-in LiPo/Li-Ion charger with overcharge and discharge protection
- Power on/off switch and mounting holes compatible with LEGO® pins and M3 screws
- 13 GPIO status LEDs, 2 RGB Neopixels, piezo buzzer with mute switch, and 2 push buttons
- 7 Grove ports supporting digital, analog, I2C, SPI, UART interfaces
- Preloaded with CircuitPython for easy programming and demo code
Contents:
- 1 x Cytron Maker Pi RP2040 board
- 4 x Grove to Female Header Cables
- 1 x Mini Screwdriver
- 1 x Silicone Rubber Feet Pack (4 pieces)
Dimensions:
- Length: 88 mm
- Width: 64 mm
- Height: 13 mm
Note: This product is discontinued and currently not available for purchase.
