Description

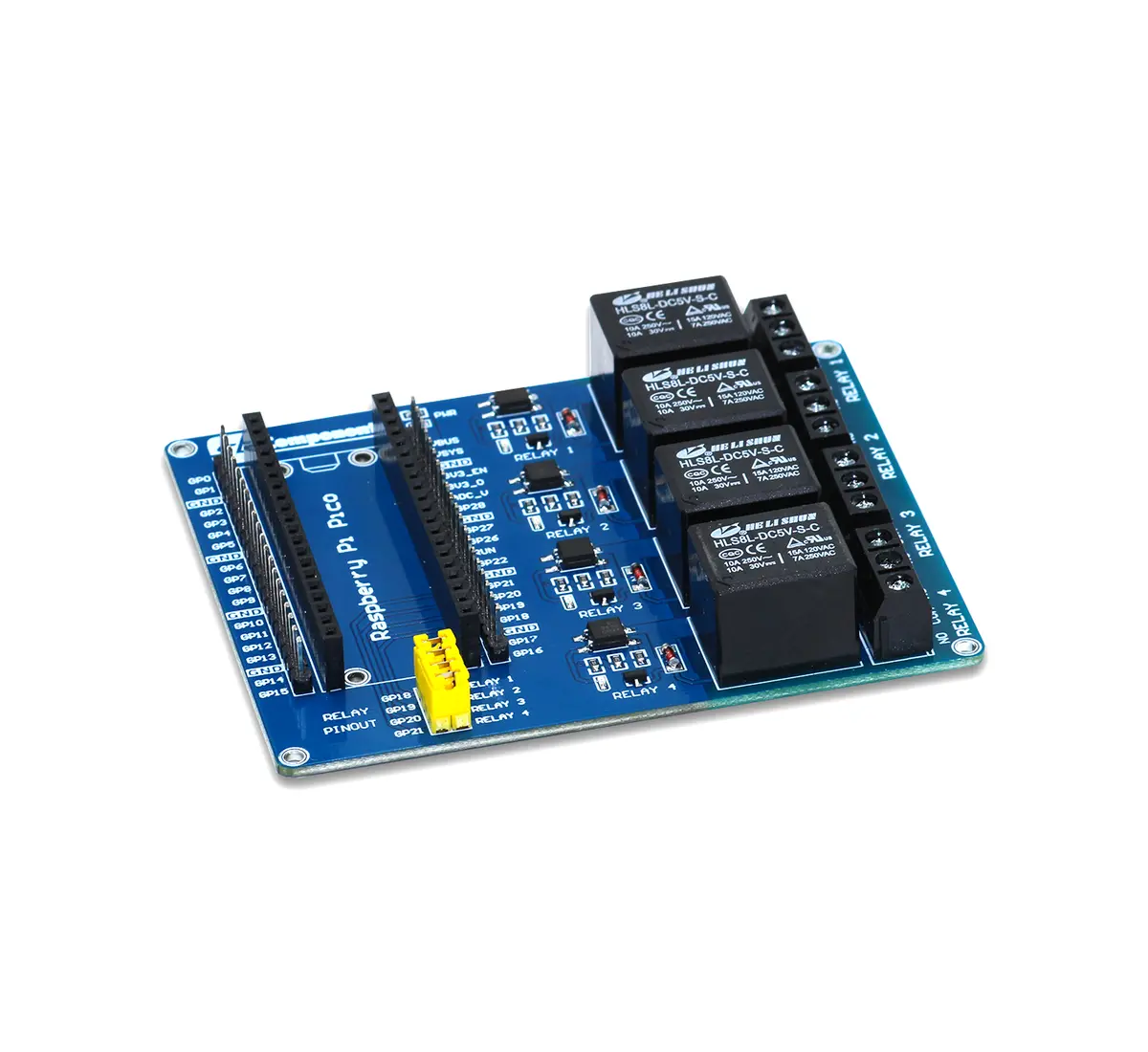

The Raspberry Pi Pico Relay Board is a high-quality 4-channel relay module designed to control high-voltage AC and DC loads with your Raspberry Pi Pico. Ideal for home automation, industrial control, and IoT applications, this board enables seamless integration with various electronic appliances, motors, and circuits.
Featuring optocoupler isolation for enhanced safety, relay control jumpers for custom pin configuration, and indication LEDs for real-time status monitoring, the Pico Relay Board offers flexibility and reliability. The 40-pin stacking header ensures easy connection with your Raspberry Pi Pico, making it a perfect choice for smart control systems.
Features:
- 4 High-Quality Relays: Supports up to 250V AC @ 7A and 30V DC @ 10A loads.
- Optocoupler Isolation: Ensures high-efficiency switching and protects circuits.
- Standardized Board Design: Compact and optimized for easy integration.
- Indication LEDs: Monitor relay output status in real-time.
- Relay Control Jumpers: Customize control pins beyond default settings.
- 40-Pin Stacking Header for Pico: Ensures seamless connectivity.
- 40-Pin External Male Headers for GPIO: Expands GPIO access for advanced projects.
Specifications:
- Channels: 4
- Operating Voltage: 5V
- Switching Voltage (AC): 7A / 250V
- Switching Voltage (DC): 10A / 30V
- Board Dimensions: 74.4mm x 93.2mm
- Weight: 150g (Approx.)
Applications:
- Home Automation
- Industrial Automation
- Smart Appliances
- Automated Gardening
- Security System
Resources:
- Github
- Wiki
Kit Content:
- 1 x Relay Board
Note: Pico Board Not Included.
