Description

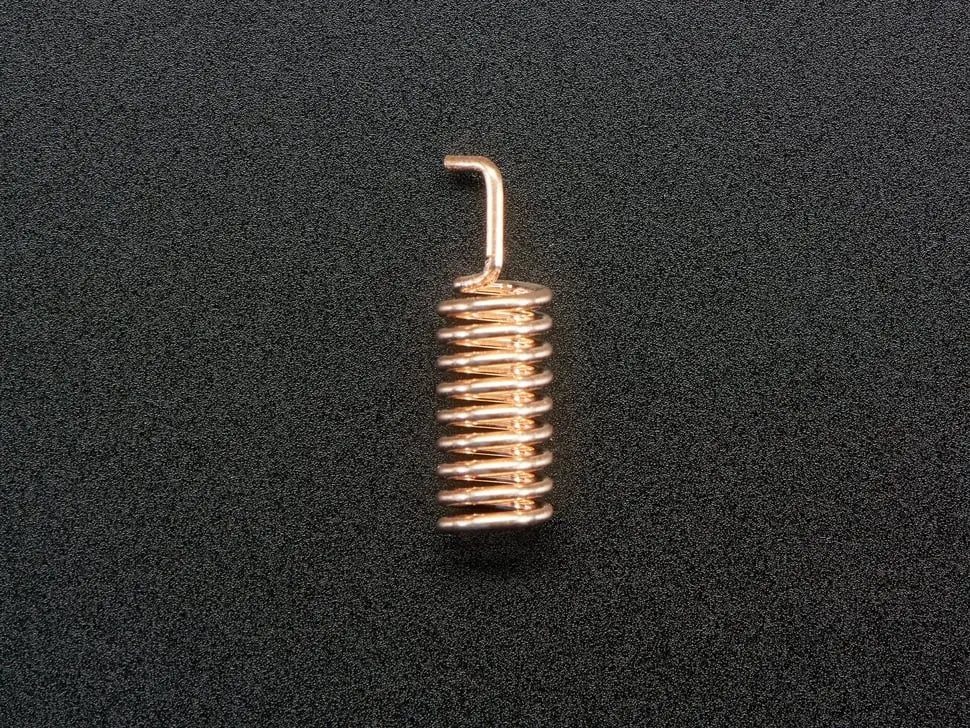

This simple spring antenna is designed for use with 900MHz RFM and LoRa breakouts, bonnets, and Feathers. Made from copper-clad wire, it can be easily soldered.
The antenna is compact, measuring only 17.5mm (0.68 inches) in length. It provides 2.15dBi gain and has a 50Ω impedance, making it compatible with wireless devices operating between 850 MHz and 950 MHz.
- Compact size (17.5mm / 0.68″)
- Gain: 2.15dBi
- Impedance: 50Ω
- Ideal for 850~950MHz wireless transceivers
- Made of copper-clad wire for easy soldering
See the datasheet for more technical information.
