Description

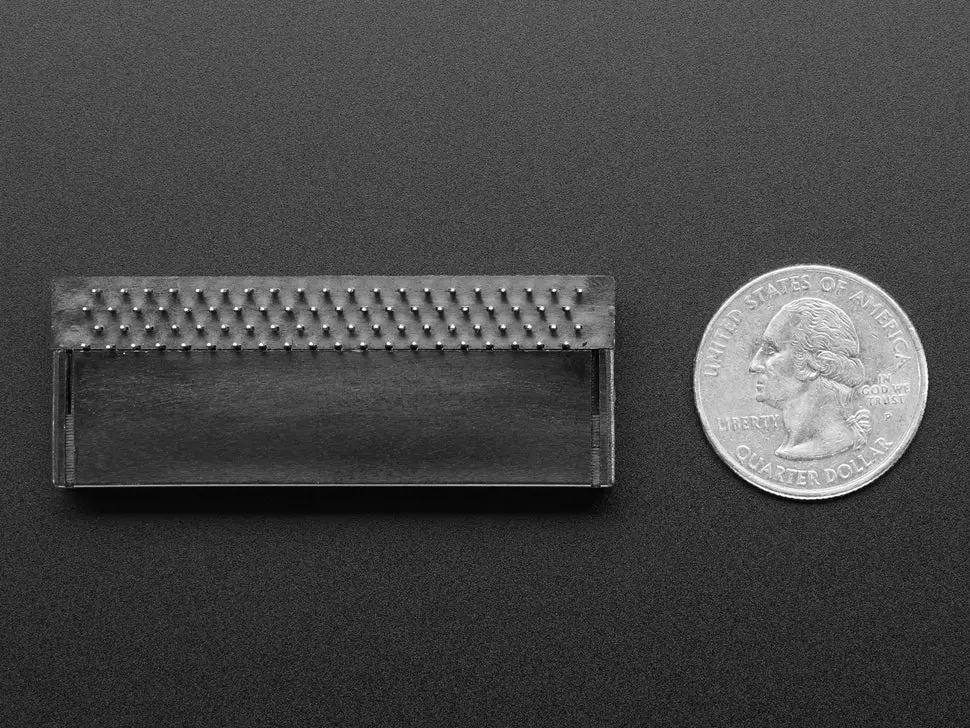

This 2×40 Right Angle Edge Connector fits directly to the edge contacts of a BBC micro:bit, providing access to all the important pins on the bottom edge of the micro:bit. It features 80 pins, though due to the varying widths of the micro:bit edge contacts, some contacts map to multiple connector pins and the back half of the pins are unused. This connector is ideal for use with a custom PCB.
Key Features:
- Fits BBC micro:bit edge contacts
- 80-pin right-angle connector
- Access all micro:bit bottom edge pins
- Compatible with custom PCBs
- Compact size: 57.0mm x 21.5mm x 12.0mm
- Lightweight: 10.2 grams
For technical specifications and pin spacing, refer to the datasheet.
