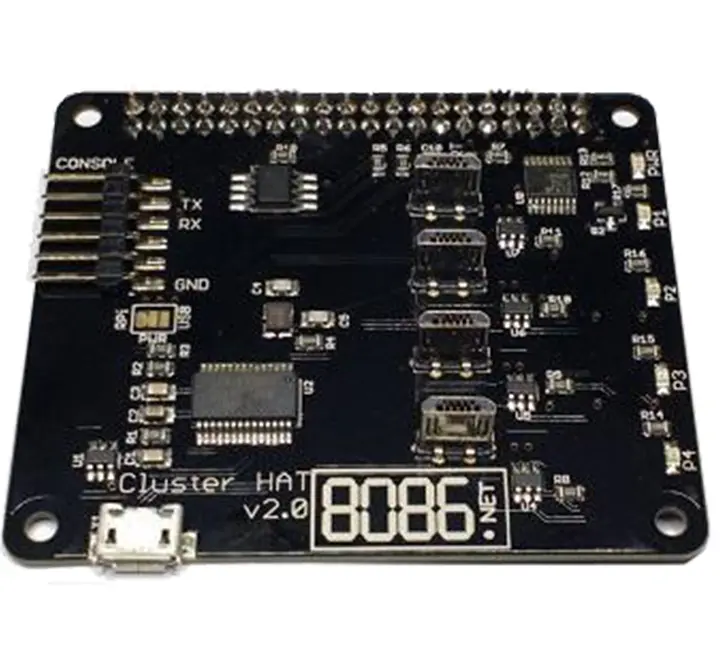

Cluster Hat for Raspberry Pi – 4-Node Mini Cluster Expansion Board

Description

RPi Cluster HAT or Raspberry Pi Super Computer has Onboard 4 port USB 2.0 hub and it interfaces all Raspberry Pi’s with 4 Raspberry Pi Zeros configured to use USB Gadget mode is an ideal tool for teaching, testing or simulating small-scale clusters.

The Cluster HAT can be used with any mix of Pi Zero 1.2, Pi Zero 1.3 and Pi Zero W

Features

• USB Gadget Mode: Ethernet and Serial Console.
• Onboard 4 port USB 2.0 hub.
• Raspberry Pi Zeros powered via Controller Pi GPIO (USB optional).
• Individual Raspberry Pi Zero power controlled via Controller Pi GPIO (I²C).
• Connector for Controller Serial Console (FTDI Basic).
• Controller Pi can be rebooted without interrupting power to Pi Zeros (network recovers on boot).

Kit Content

• Cluster HAT
• HAT standoffs and screws
• Short USB rope (color may vary)
