Bus Pirate 5 KF141 Right-Angle Quick-Connect Adapter

Description

This accessory makes wiring up sensors to your Bus Pirate 5 a snap with snap-open quick connects that plug into the BP5’s header port. Perfect for connecting wires quickly and easily for your projects.

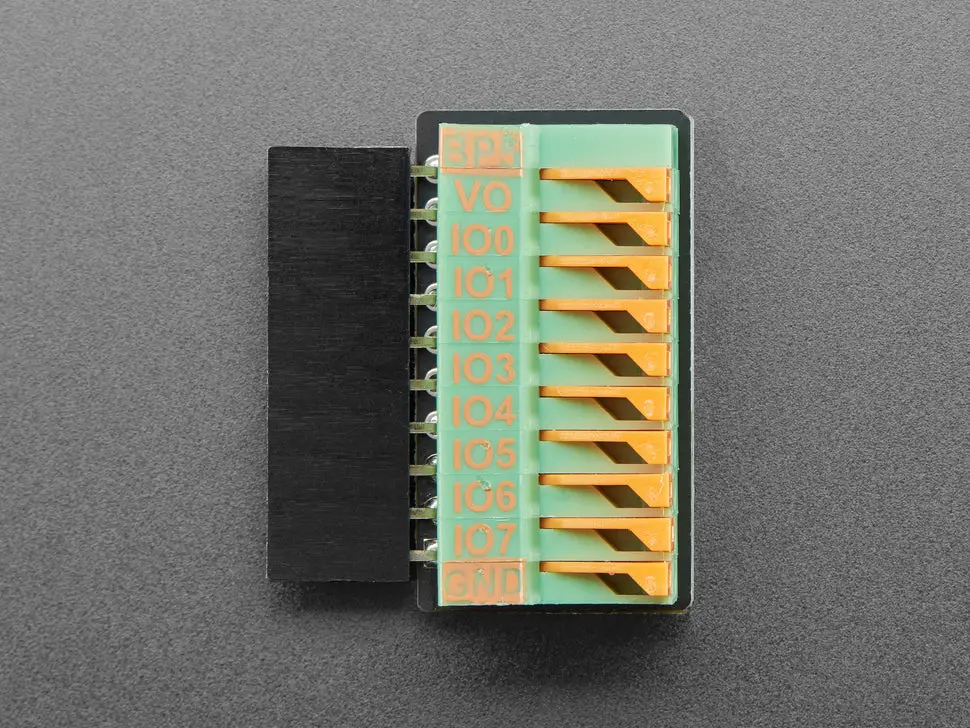

The KF141 is a popular quick connector block featuring sturdy spring retention clamps. Simply press the lever, insert a stripped wire, then release the lever to clamp it firmly in place. Pin names are silkscreened in bright orange to ensure correct connections on the first try. It is made with the highest quality KF141 components.

Wires clamps are oriented to the front of the connector block, and pin names are clearly marked to save time and reduce errors.

Technical Documentation:

• KF141-Right Angle Adapter Schematic and PCB
• KF141 Adapter Hardware Documentation

This product is RoHS 2 2011/65/EU and RoHS 2 2015/863/EU compliant.
