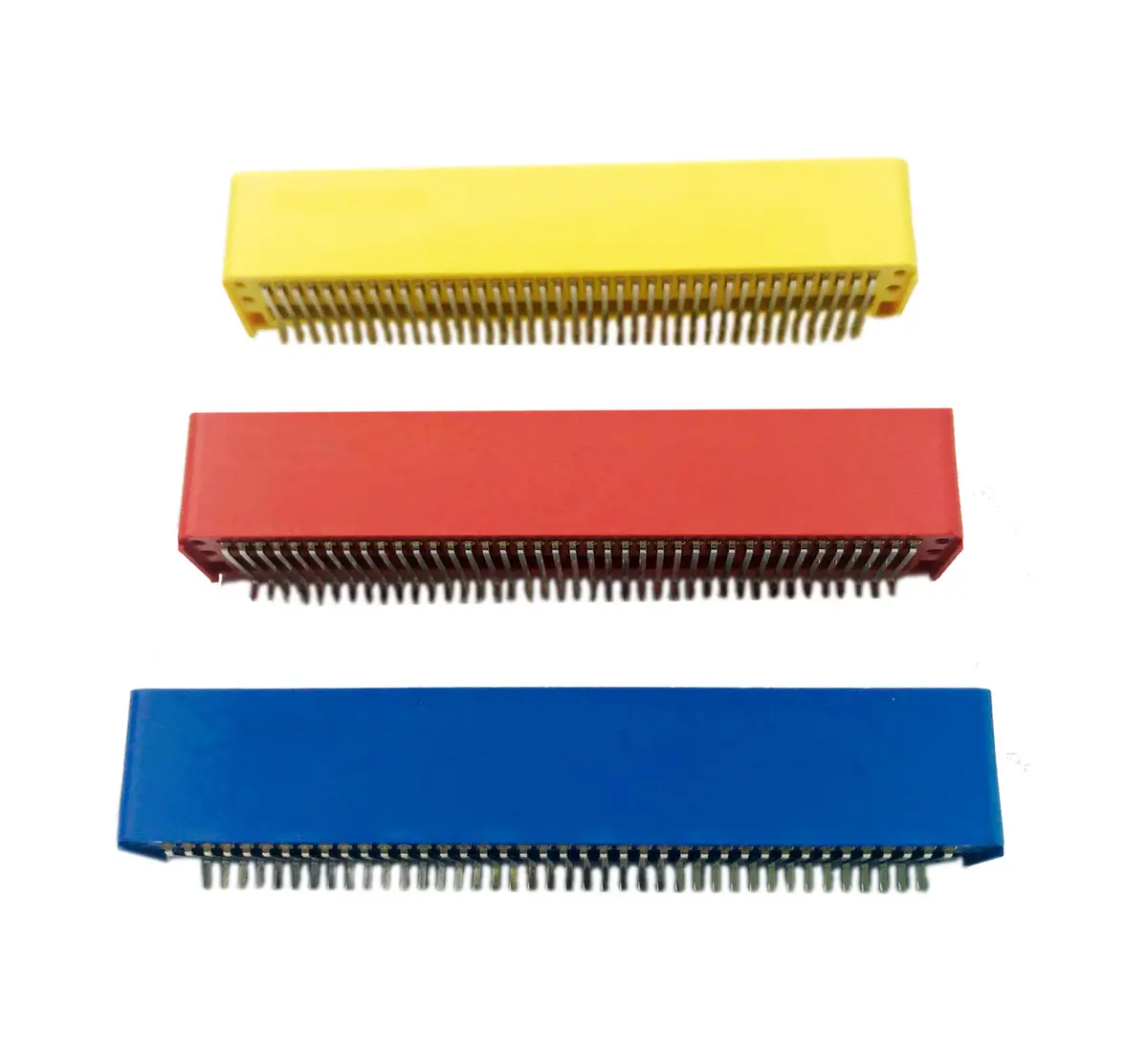

BBC Micro:Bit 40-pin surface-mount right-angle edge connector set in vibrant multicolor variants — includes 5 durable connectors for compact, reliable board interfacing.

Description

High-quality BBC micro:bit header, 1.27mm 40P 90 degree DIP type SMT edge connector

Features

• Pitch: 1.27mm
• No. of Pins: 40Pin
• Type of Row: Double Row
• Body Orientation: SMT, R/A
• Gender: 90 Degree SMT Connector

Specifications

• Color: Multicolor
• Positions: 1×40 Pins
• Plastics Height: 10.6mm
• Plastics Width: 12.2 Mm Length 56.8
• Current Rating: 3A
• Insulation Resistance: 1000MΩ Min
• Dielectric Withstanding Voltage: AC 500V
• Contact Resistance: 30mΩ Max
• Operating Temperature: -30 To +80°C
• Insulation Material: PA9T UL94V-0
• Contact Material: Copper Alloy
• Plating: Gold + Nickel

Box Content

• 5 x micro:bit Header

Note: Colors of the headers may vary, will be sent as per the availability.
