Description

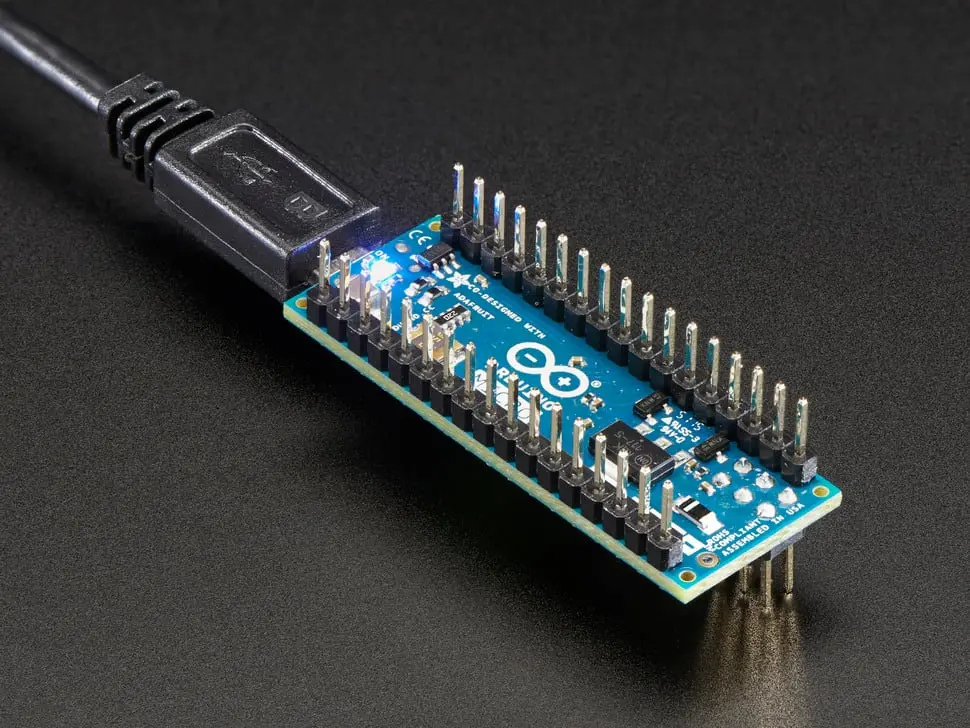

The Arduino Micro is a compact 5V 16MHz microcontroller board based on the ATmega32u4, offering the full power of the Arduino Leonardo in a tiny size of 1.9″ x 0.7″ (48mm x 18mm). It features a USB-native 8-bit microcontroller with 32 KB flash memory and 2.5 KB RAM, programmable directly via the micro USB connector or a 6-pin ISP header.
Key features include a processor, crystal oscillator, micro USB connection with fuse, Reset button, ISP header for low-level programming, onboard LEDs including ON, TX, RX and a user LED on pin 13, and a 3.3V regulator. This version comes with headers pre-soldered and operates at 5V logic with a 16MHz crystal.
The Arduino Micro is ideal for breadboard projects or when you need a compact microcontroller with USB client capabilities, such as appearing as a mouse or keyboard to computers. It has the same pins as the Arduino Leonardo but is not shield compatible.
- Microcontroller: ATmega32u4
- Operating Voltage: 5V
- Input Voltage (recommended): 7-12V
- Input Voltage (limits): 6-20V
- Digital I/O Pins: 20
- PWM Channels: 7
- Analog Input Channels: 12
- DC Current per I/O Pin: 40 mA
- DC Current for 3.3V Pin: 50 mA
- Flash Memory: 32 KB (4 KB used by bootloader)
- SRAM: 2.5 KB
- EEPROM: 1 KB
- Clock Speed: 16 MHz
- Dimensions: 1.9″ x 0.7″ (48mm x 18mm)
- Weight: 6.5 g
Note: This product is no longer stocked.
