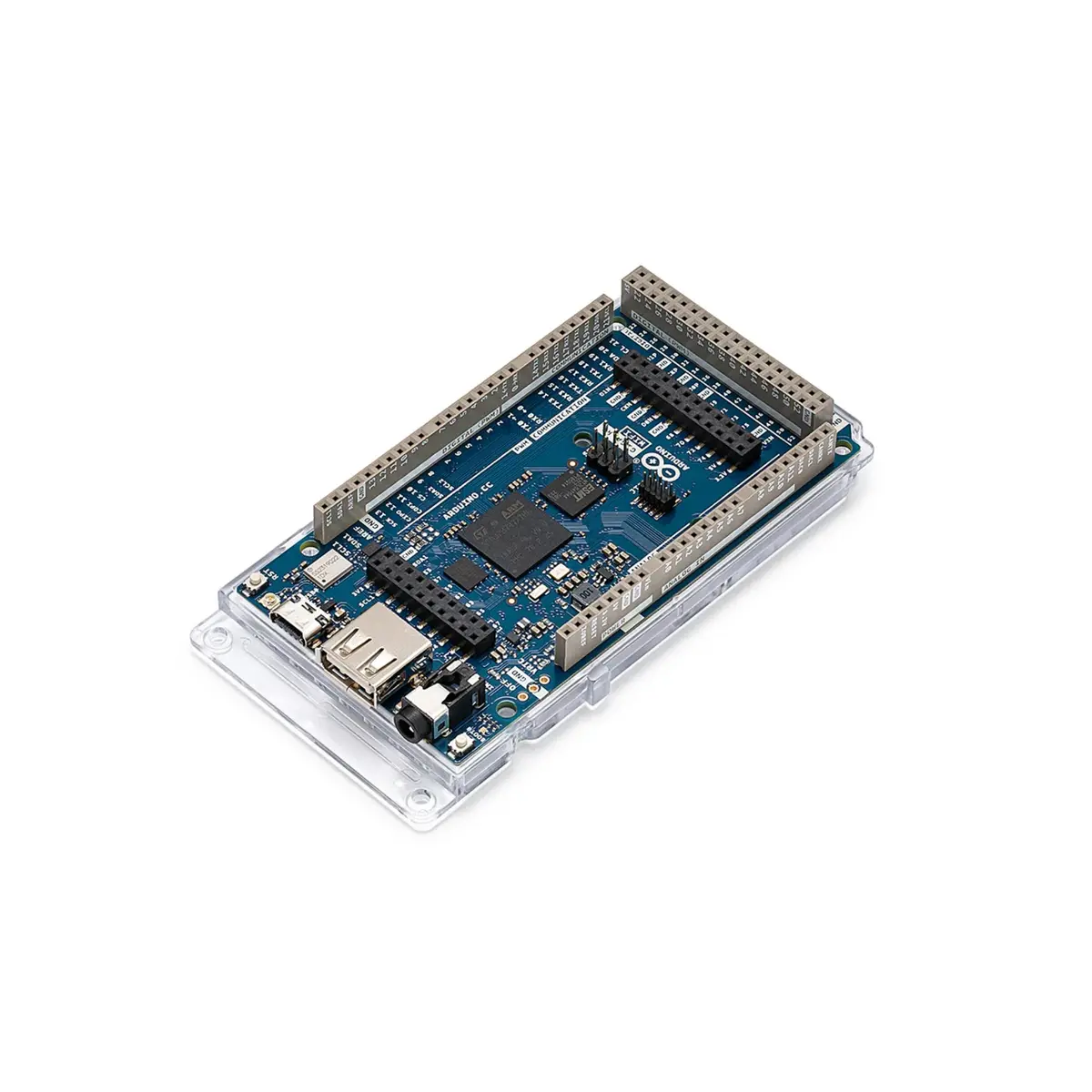

Arduino Giga R1 WiFi Development Board

Description

The Arduino GIGA R1 WiFi is a high-performance microcontroller board designed for ambitious makers, developers, artists, and engineers. Whether you’re building advanced robotics, smart IoT systems, real-time audio-visual installations, or immersive gaming experiences, this board gives you all the power you need—while staying true to Arduino’s accessibility and ease of use.

With the dual-core STM32H747XI microcontroller, you get two powerful brains in one: a Cortex®-M7 (480 MHz) and a Cortex®-M4 (240 MHz), allowing simultaneous operations and multi-threaded programming. Run Arduino code on one core and MicroPython on the other, opening up advanced development workflows.

Key Features:

• Dual-Core Power: Run concurrent code on the Cortex®-M7 and Cortex®-M4 cores for high-efficiency multitasking.

• Built-in Wi-Fi & Bluetooth®: Powered by the Murata 1DX module for seamless connectivity.

• Secure Communications: Equipped with the ATECC608A crypto chip to ensure secure authentication and encrypted data.

• Massive I/O and Expansion: 76 GPIOs, 4 UARTs, 3 I2C, 2 SPI, 12 analog inputs, and dual DAC outputs. Compatible with Mega/Due form factors.

• USB-A Host Port: Connect USB sticks, keyboards, mice, or other USB peripherals directly to the board.

• USB-C for Power & HID: Program or emulate USB HID devices like keyboards and mice.

• 3.5mm Audio Jack: Connect audio devices to DAC0, DAC1, and A7 pins.

• Camera & Display Support: Dedicated Arducam and display interfaces make media projects easier than ever.

• Expanded Voltage Input: Accepts a broad 6–24V range—more flexibility for power sources.

Perfect For:

• Advanced IoT Projects

• Audio/Visual Installations

• Robotics & Automation

• Edge Computing

• Data Logging & Cloud-Connected Applications

• Makers transitioning from Mega or Due

Tech Specs Summary:

• Microcontroller: STM32H747XI Dual Core ARM® Cortex®-M7 + M4

• Flash/RAM: 2MB Flash, 1MB RAM

• Wireless: Wi-Fi® 802.11 b/g/n, Bluetooth®

• Secure Element: ATECC608A

• GPIO Pins: 76

• Analog Inputs: 12

• PWM: 12 Channels

• USB Ports: USB-C® (Power/Programming), USB-A (Host)

• Audio Jack: 3.5mm (DAC0, DAC1, A7)

• Camera Support: 20-pin Arducam Connector

• Voltage: 3.3V Logic, 6–24V Input

• Form Factor: 101 x 53 mm

• Compatible with Arduino IDE and Arduino IoT Cloud

Package Includes:

• 1x Arduino GIGA R1 WiFi Board

• 1x Mini u.FL Antenna

• 1x Clear Acrylic Protective Case
