Description

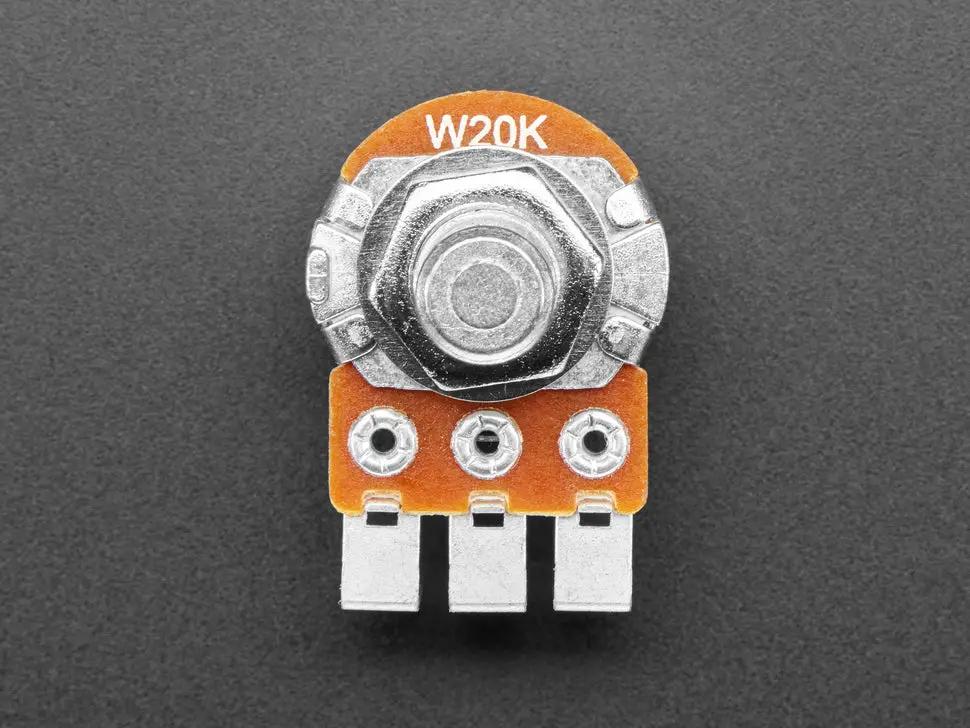

This Alpha 20K “W” TS Tone potentiometer is a versatile component suitable for both breadboard and panel mounting. Featuring a unique W taper that behaves as reverse audio log up to the midpoint, then regular audio log (sometimes called ‘G’ taper), it offers smooth and reliable operation.
Designed with legs spaced 0.2″ apart with pin-points, it plugs easily into breadboards or perfboards. The round shaft measures approximately 6mm diameter, allowing panel mounting with the included washer and hex nut after prototyping.
Highly regarded for their reliability and consistency, Alpha potentiometers provide a low-cost, high-quality solution for your rotary control needs.
- 20K ohm resistance with W TS Tone taper
- Two-in-one breadboard and panel mount design
- Legs spaced 0.2″ apart with pin-points for easy breadboard insertion
- Round shaft approx. 6mm diameter (measured 6.3mm)
- Includes washer and hex nut for panel mounting
- Smooth and non-loose rotary action
