Description

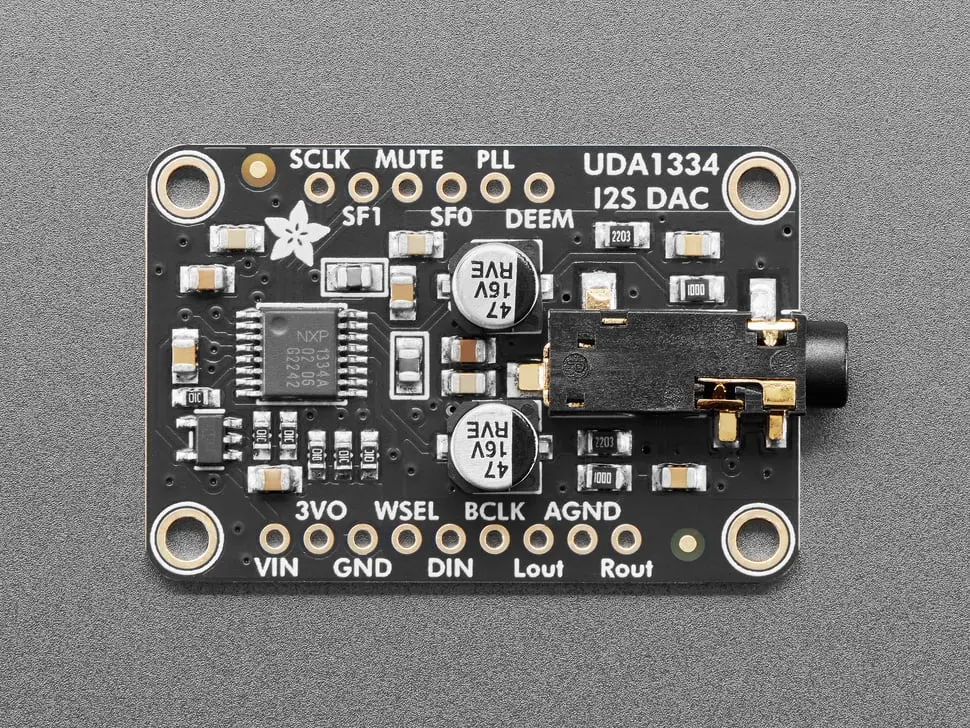

The Adafruit I2S Stereo Decoder – UDA1334A Breakout is a fully-featured audio DAC designed for I2S-output audio interfaces. Featuring the NXP UDA1334A chip, this breakout board supports 3.3V to 5V logic levels and multiple data formats including classic I2S, 16-bit, 20-bit, and 24-bit left-justified data. It provides clear, analog stereo line-level output through a 3.5mm headphone jack or breadboard-friendly pads.
Ideal for devices such as the Raspberry Pi, it includes a built-in PLL to generate proper clocks from the bitclock signal, and supports MCLK-less I2S interfaces. Additional features include a mute pin, a de-emphasis filter, ferrite beads for noise reduction, a low-dropout regulator, and a recommended band-pass filter for clean audio output.
- Compatible with 3.3V – 5V logic levels
- Supports multiple input formats: I2S, 16/20/24-bit left-justified
- Built-in PLL for MCLK-less I2S interfaces
- 3.5mm stereo headphone jack and breadboard-friendly pads
- Low noise output with ferrite beads and band-pass filter
- Includes header for soldering
Dimensions: 40.0mm x 25.0mm x 7.1mm
Weight: 4.6g
