Description

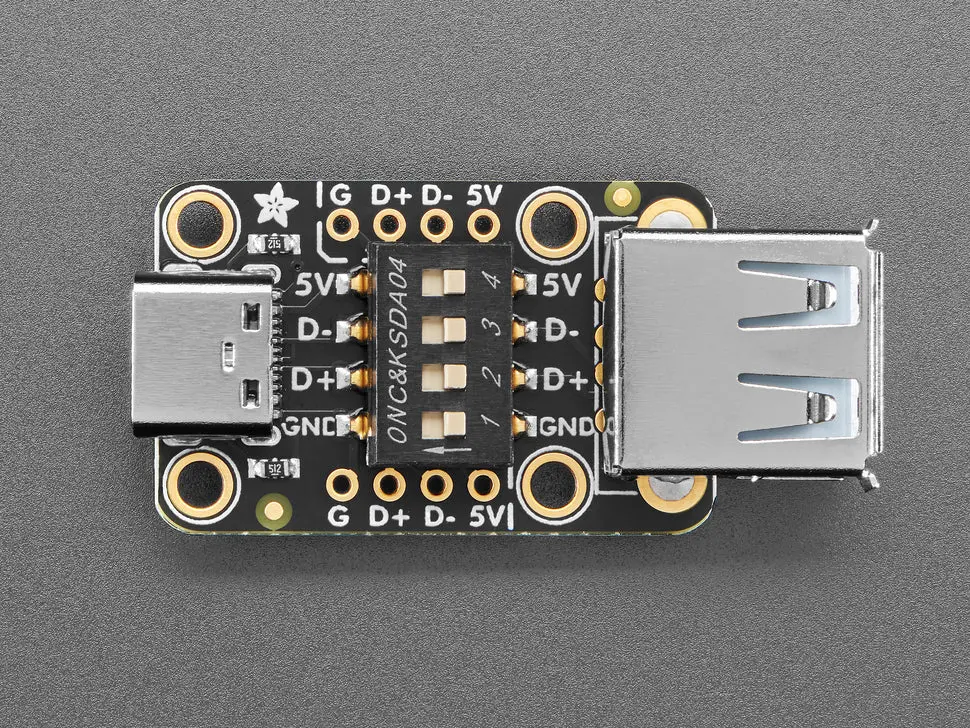

The Adafruit Switchable USB Type A to C Breakout Board is a versatile USB interface breakout that allows manual switching of the four USB wires using a 4-DIP switch. This feature provides multiple functionalities:
- Enable charge-only mode by switching off D+ and D- data lines
- Power monitoring with high side or low side switch options on V+ or GND lines
- USB signal tapping and power voltage monitoring while keeping all switches on
The breakout is designed for low-current microcontroller projects, using C&K SDA04H1SBD switches rated for 5V 100mA. This compact board measures 39.7mm x 19.0mm x 9.5mm and weighs 4.9 grams.
Check out the included images and video for more details and application ideas.
