Description

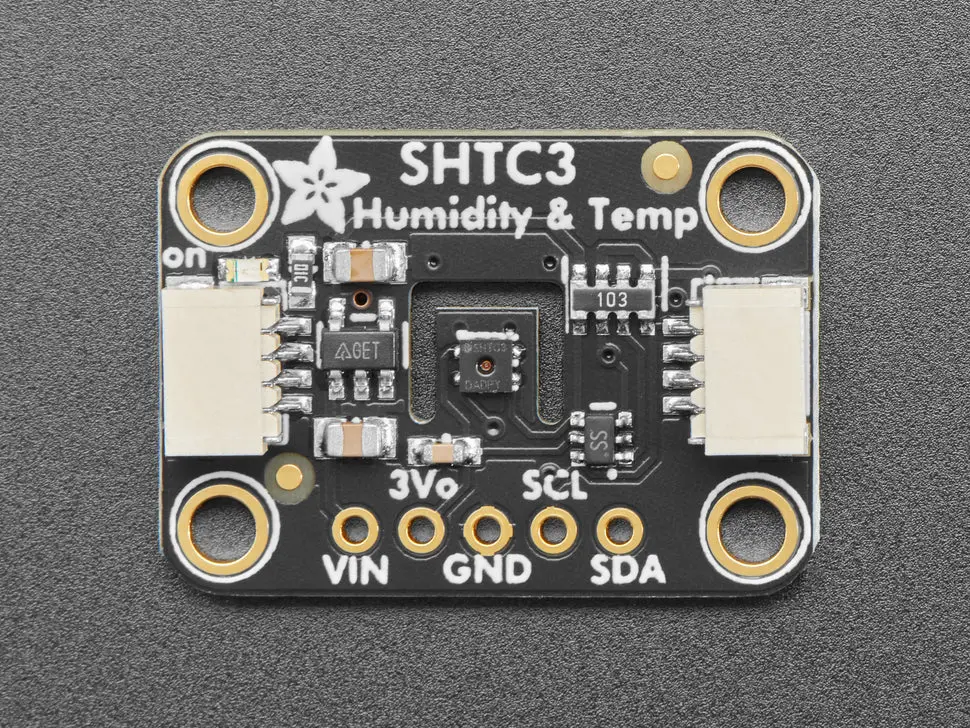

The Adafruit Sensirion SHTC3 sensor is a highly accurate temperature and humidity sensor with a true I2C interface for easy connectivity. Featuring ±2% relative humidity and ±0.2°C temperature accuracy, it is suitable for a wide range of applications.
This breakout includes the SHTC3 sensor along with supporting circuitry such as pull-up resistors and capacitors. The board is 3V and 5V compliant and comes with STEMMA QT / Qwiic connectors, allowing solderless connection with compatible cables.
Each purchase includes a fully assembled, tested PCB breakout and a small piece of header for soldering if you wish to use it on a breadboard. Arduino and CircuitPython libraries are available for easy interfacing.
- Ultra-low power consumption
- 0 to 100 %RH humidity measurement range
- -40°C to 125°C temperature measurement range
- Typical accuracy of ±2 %RH and ±0.2°C
- Power-up and measurement within 1 ms
- NIST traceable
- True I2C interface at address 0x70
- 3V and 5V compatible
- Includes STEMMA QT / Qwiic connectors for easy plug-and-play
For full schematics, code, and additional resources, please visit the product learning guide.
