Description

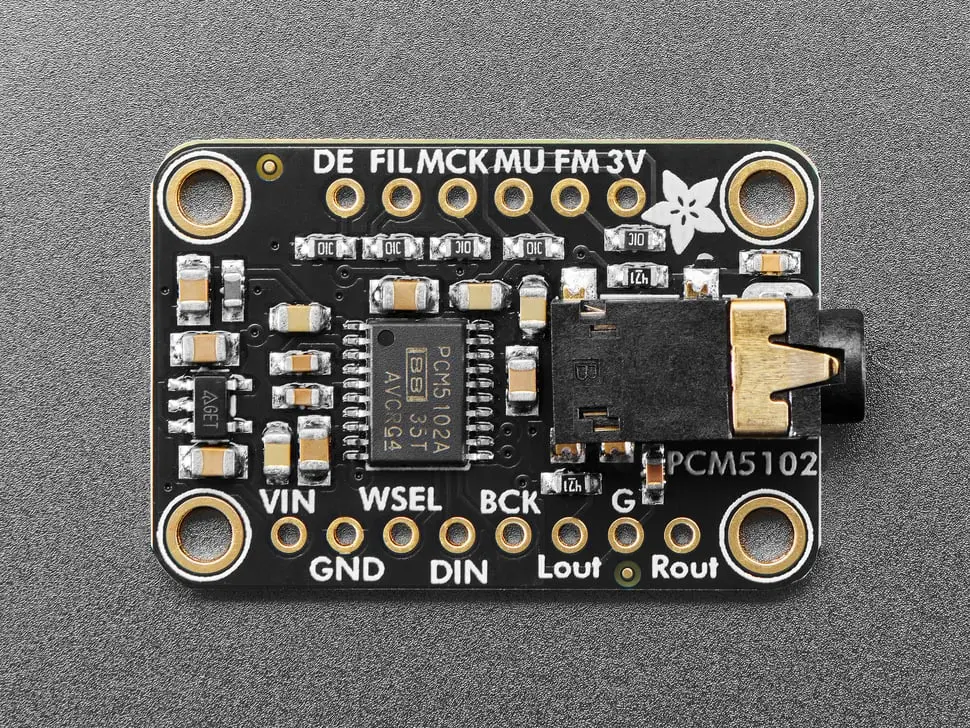

The Adafruit PCM5102 I2S DAC is a high-quality digital audio to analog converter that delivers clean, excellent stereo audio with a signal-to-noise ratio of 112dB. It requires no MCLK or I2C configuration, simply supply I2S digital audio signals and power it with 3-5VDC.
This breakout board supports 16, 24, or 32-bit audio widths and auto-generates the master clock internally. It features selectable digital filter latency and performance, mute and filtering functions, and de-emphasis support for 44.1kHz audio. The line-level output is provided via a 3.5mm jack and on breakout pads, intended for loads of 1 kOhm or higher. The board cannot drive headphones directly.
- Clean stereo audio output with 112dB SNR
- No need for MCLK or I2C configuration
- Supports 16, 24, 32-bit audio, I2S/Left-Justified formats
- Power supply: 3 to 5 VDC
- 3.5mm line level audio output jack plus breakout pads
- Integrated power-on reset and power-save modes
- Small form factor: 32.5mm x 20.3mm x 6.2mm
- Weight: 2.8 grams
Each purchase includes one PCM5102 I2S stereo DAC breakout board and header for soldering.
