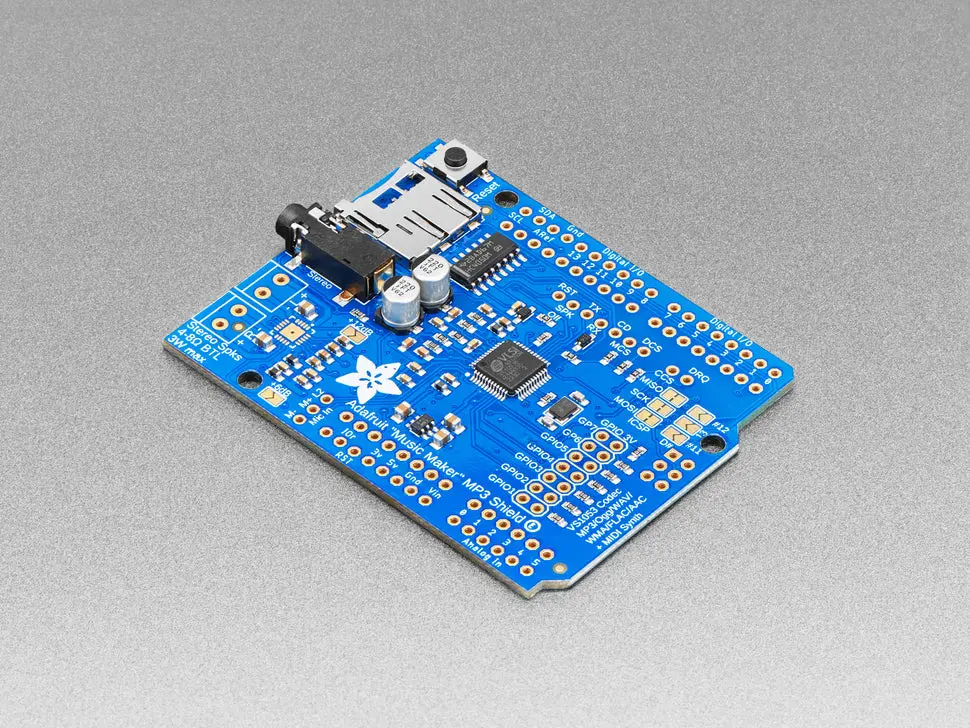

Adafruit MP3 Music Maker Shield for Arduino

Description

Bend all audio files to your will with the Adafruit Music Maker shield for Arduino! This powerful shield features the VS1053 codec chip capable of decoding a wide variety of audio formats including MP3, AAC, Ogg Vorbis, WMA, MIDI, FLAC, WAV (PCM and ADPCM). It can also record audio in both PCM (WAV) and compressed Ogg Vorbis formats.

Audio settings such as bass, treble, and volume can be adjusted digitally. The shield uses a lightweight SPI interface allowing any Arduino to play audio from an SD card. It also includes a built-in MIDI synth/drum machine mode that reads classic 31250Kbaud MIDI data and acts as a synth/drum machine with dozens of built-in effects.

Note: This version only provides stereo line/headphone output. For projects requiring louder output, a version with a 3W/channel class-D stereo speaker amplifier is available.

• VS1053B codec chip decodes Ogg Vorbis, MP3/MP2/MP1, MP4, AAC, WMA, FLAC, WAV/PCM, MIDI. Encodes Ogg or WAV/PCM
• Stereo audio out with proper audio filter caps and ground reference for safe connection to headphones or powered speakers
• 7 extra GPIOs accessible via Arduino Library
• MicroSD card socket for FAT16/FAT32 cards (64MB or larger)
• 3.3/5V level shifting for SD and MP3 chipsets
• Compatible with Arduino Uno, Mega, and Leonardo
• Built-in MIDI synth/drum machine with dozens of instruments
• Optional breakout pins including card-detect and microphone input

Includes one fully-assembled and tested shield, 2 2-pin terminal blocks, 0.1″ male header, and 2×3 female header for ICSP connection. Requires light soldering to attach headers and terminal blocks. Speakers, headphones, SD card, and Arduino board are not included.

For detailed instructions and tutorials, visit: Adafruit Music Maker Shield Tutorial
