Adafruit LSM6DSOX + LIS3MDL FeatherWing – High-Precision 9-DOF IMU

Description

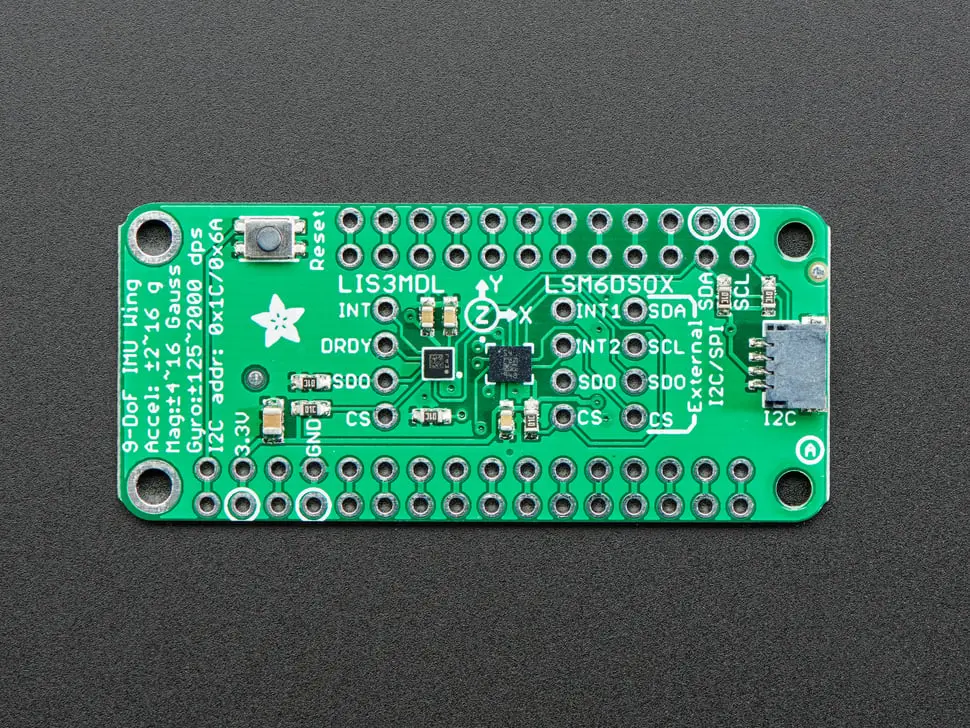

Upgrade any Feather board with the Adafruit LSM6DSOX + LIS3MDL FeatherWing, a precision 9-DoF IMU for full motion sensing. This all-in-one sensing Wing provides 9 degrees of freedom using two fantastic sensors from STMicroelectronics.

The board features the LSM6DSOX 6-DoF IMU, with a 3-axis accelerometer and 3-axis gyroscope. The accelerometer detects acceleration and orientation, while the gyroscope measures rotational motion with low noise and drift. The sensor supports flexible data rates and ranges: ±2/±4/±8/±16 g accelerometer at 1.6 Hz to 6.7 kHz update rate and ±125/±250/±500/±1000/±2000 dps gyroscope at 12.5 Hz to 6.7 kHz.

Additionally, it features the LIS3MDL 3-axis magnetometer, which detects magnetic north and measures magnetic fields with selectable scales of ±4/±8/±12/±16 gauss. Both sensors communicate over a shared I2C bus compatible with any Feather board, with breakout interrupt pins and address-selection jumpers for flexibility.

• Precise 9 degrees of freedom IMU combining accelerometer, gyroscope, and magnetometer
• LSM6DSOX sensor includes pedometer, step counter, tap detection, and machine learning core
• Flexible accelerometer and gyroscope ranges and data rates
• LIS3MDL magnetometer with 16-bit output and interrupt support
• Compatible with Arduino and CircuitPython with available libraries
• Includes SparkFun Qwiic compatible STEMMA QT connector for easy I2C connectivity
• Fully assembled with four mounting holes and 0.1″ header

This precision 9-DoF FeatherWing is ideal for orientation, gesture recognition, activity tracking, and other motion sensing applications.
