Description

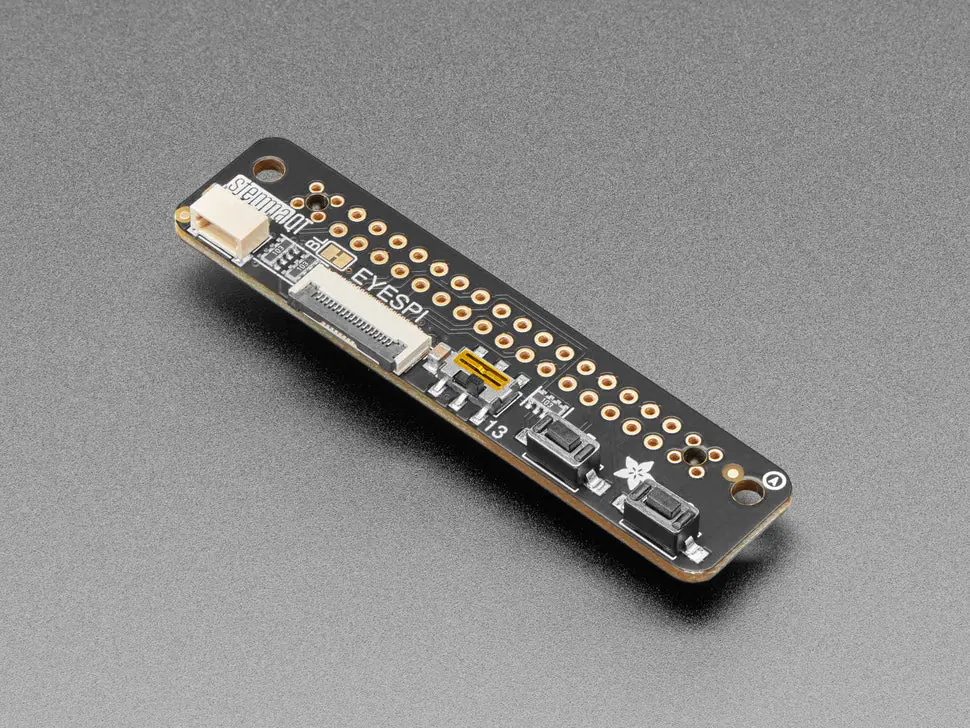

Raspberry Pi’s are versatile computers, made even better with the Adafruit EYESPI Pi Beret – a slim HAT that simplifies connecting displays and sensors. This board features an 18-pin EYE SPI standard FPC connector designed for quick, long-distance connections to high-pin count SPI displays, streamlining your Raspberry Pi projects.
Key Features include:
- SPI pins (MOSI/MISO/SCK) connected to the Raspberry Pi’s default SPI port
- I2C pins (SDA/SCL) connected to the default I2C port
- Display CS on Raspberry Pi CE 0
- Display DC on GPIO #25
- Display Reset on GPIO #27
- Display Busy on GPIO #17 (for E-Ink displays)
- Display Backlight on GPIO #18 with a jumper to disable or repurpose PWM output
- Touch CS on CE 1 and Touch IRQ on GPIO #24
- Includes a Stemma QT connector for easy connection of Qwiic/Stemma QT I2C devices
- Two tactile switches on GPIO #5 and #6, and a slide switch on GPIO #13 for user interface or configuration
Note: Display and EYESPI cable are not included and need to be purchased separately.
