Adafruit EyesPi Camera Breakout with 18-Pin FPC Socket

Description

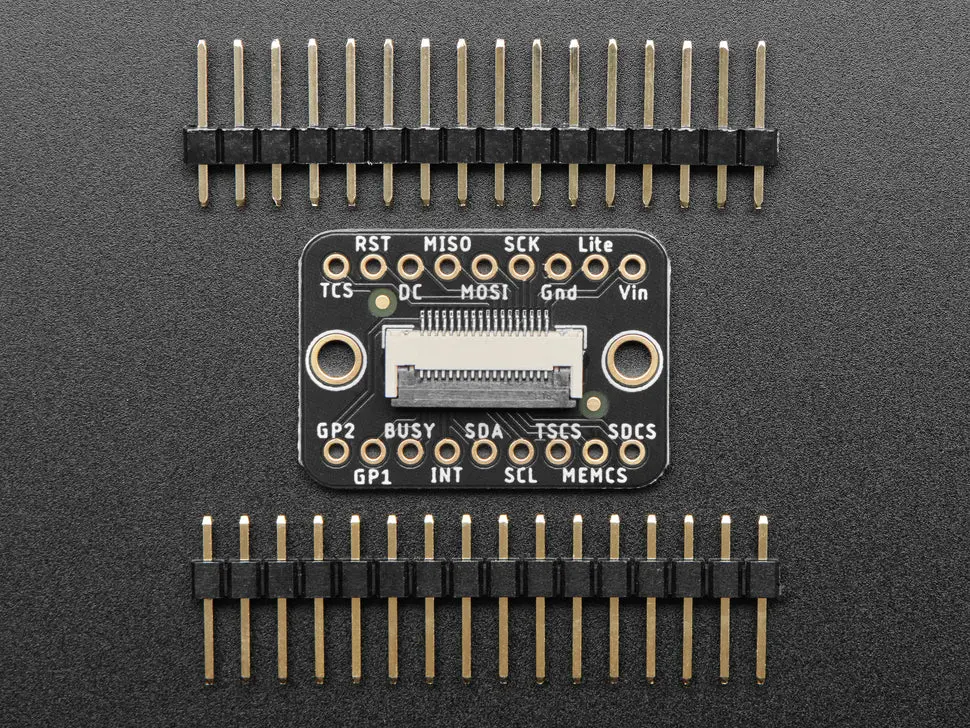

The Adafruit EYESPI Breakout Board features an 18-pin “EYE SPI” standard FPC connector with a flip-top connector, designed as a specialized breakout for display wiring requiring many SPI pins over long distances using an 18-pin 0.5mm pitch FPC connector.

This breakout board makes it easy to connect and extend display wiring to a 0.1″ spaced header for breadboarding and prototyping, with each pin labeled for clarity. Typical use involves connecting the left half of the breakout for power and SPI connectivity.

Features:

• 18-pin “EYE SPI” FPC connector with 0.5mm pitch
• Flip-top connector for easy cable connection
• Breakout to 0.1″ spaced GPIO header pins
• Compact dimensions: 25.3mm x 17.7mm x 3.6mm
• Allows long distance SPI signal wiring for displays
• Compatible with 18-pin EYESPI FPC cables (sold separately)

This breakout board is perfect for developers requiring a reliable and tidy method to interface SPI displays using the EYESPI standard connector.
