Description

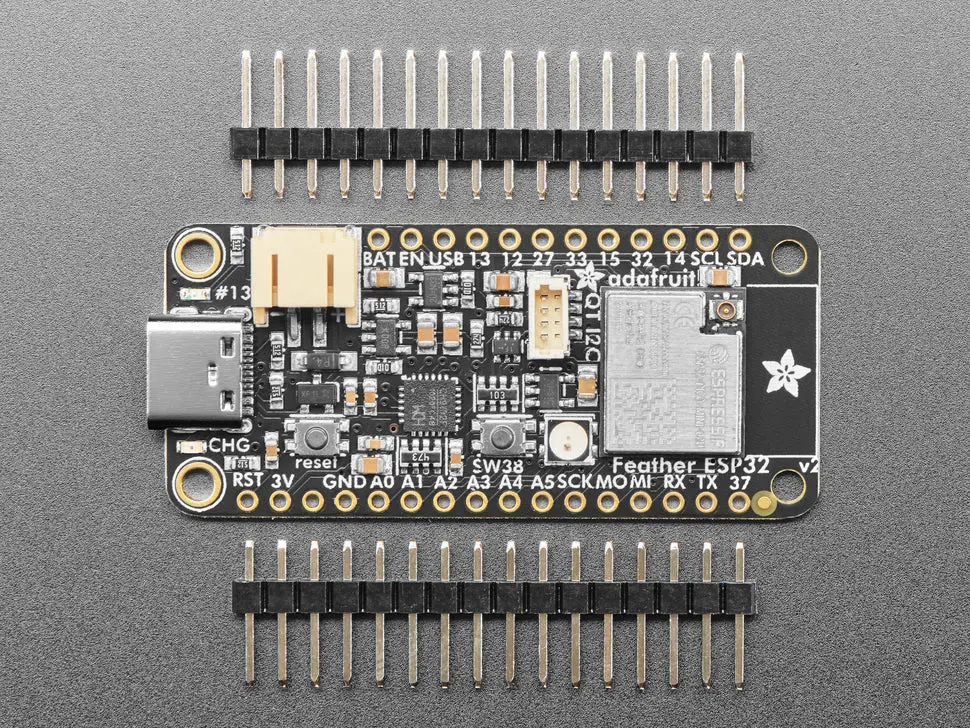

The Adafruit ESP32 Feather V2 with w.FL Antenna features the powerful ESP32 dual-core 240MHz processor with 8MB Flash and 2MB PSRAM. This updated version includes a w.FL antenna connector for attaching an external RF adapter or antenna, making it perfect for enclosures or for increased antenna gain with a larger dipole.
This board comes with a mini module that has FCC/CE certification, USB Type C port, built-in battery charging, and a separate controllable 3.3V power supply for STEMMA QT that allows ultra-low power consumption with attached sensors. It supports WiFi and Bluetooth® Classic/LE functionality, making it ideal for wireless or internet-connected projects.
Key Features:
- ESP32 Dual-core 240MHz Xtensa® processor
- 8 MB Flash and 2 MB PSRAM in mini module
- External w.FL antenna connector (MHF3 / IPEX3 / w.FL, not u.FL)
- Built-in battery charging with USB Type C
- Separate controllable 3.3V supply for STEMMA QT port
- NeoPixel mini RGB LED with power control
- Additional user button on input pin 38
- Low power consumption: 70uA in deep sleep mode from Lipoly battery
- High speed upload and debug with ultra-reliable CP2102N chipset
- Compatible with Arduino and MicroPython
Technical Specifications:
- Processor: ESP32 dual-core 240 MHz Tensilica LX6
- Memory: 8 MB Flash, 2 MB PSRAM
- Connectivity: WiFi 802.11 b/g/n, Bluetooth Classic & BLE
- Dimensions: 52.0mm x 22.8mm x 7.2mm (2.0″ x 0.9″ x 0.3″)
- Weight: 6.0g
- Charging: Built-in charger for LiPoly batteries
- USB: USB Type C port
- Sensors: Hall sensor, 10 capacitive touch interfaces
- Interfaces: 3 UARTs, 3 SPIs, 2 I2Cs (one default in Arduino IDE), PWM/timers on all GPIOs
- Other: 12 ADC channels, 2 DACs, SD card interface
Please note the w.FL antenna connector is not a common u.FL connector. Compatible WiFi antennas and adapters are available from Adafruit. Battery and USB cable are not included.
