Description

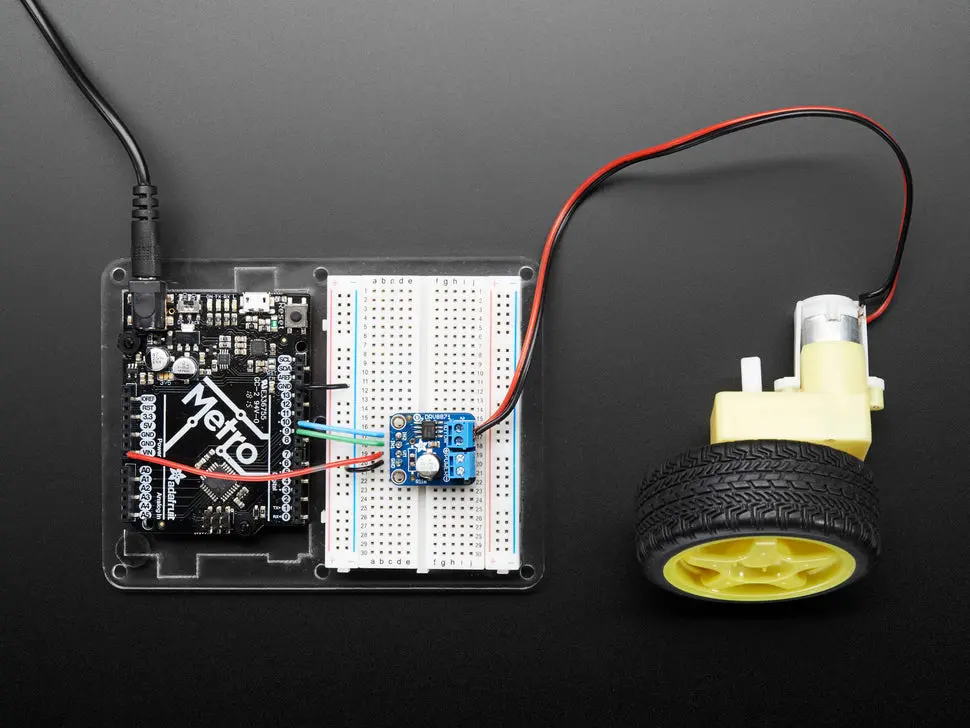

The Adafruit DRV8871 motor driver breakout board is designed for robotics and mechatronics projects. It supports motors with a voltage range of 6.5V to 45V and includes features such as current limiting, auto PWM control, undervoltage lockout, overcurrent protection, and thermal shutdown. The board can handle up to 3.6A of peak current and allows simple motor control via PWM inputs. It includes an adjustable current limit through an external resistor. The board is fully assembled and tested, requiring minimal soldering.
Specifications:
- Voltage Range: 6.5V to 45V for motor power
- Logic Level: Up to 5.5V on IN pins
- Efficiency: 565mΩ typical RDS(on)
- Peak Current: 3.6A
- Control: PWM input control for motor regulation
- Current Limiting: Adjustable via external resistor (30K default for ~2A limit)
- Protection Features: Undervoltage lockout, overcurrent protection, thermal shutdown
- Simple Operation: Easy motor control via IN1 and IN2 inputs
- Assembly: Pre-soldered terminal blocks; minimal soldering required for header attachment
