Description
What’s better than a single LED? Lots of LEDs! The Adafruit Small 1.2″ 8×8 LED Matrix with I2C Backpack is a fun way to create a small, bright display. It features an ultra-bright pure-green 1.2″ 8×8 LED matrix controlled via an I2C interface, minimizing wiring complexity and conserving microcontroller pins.

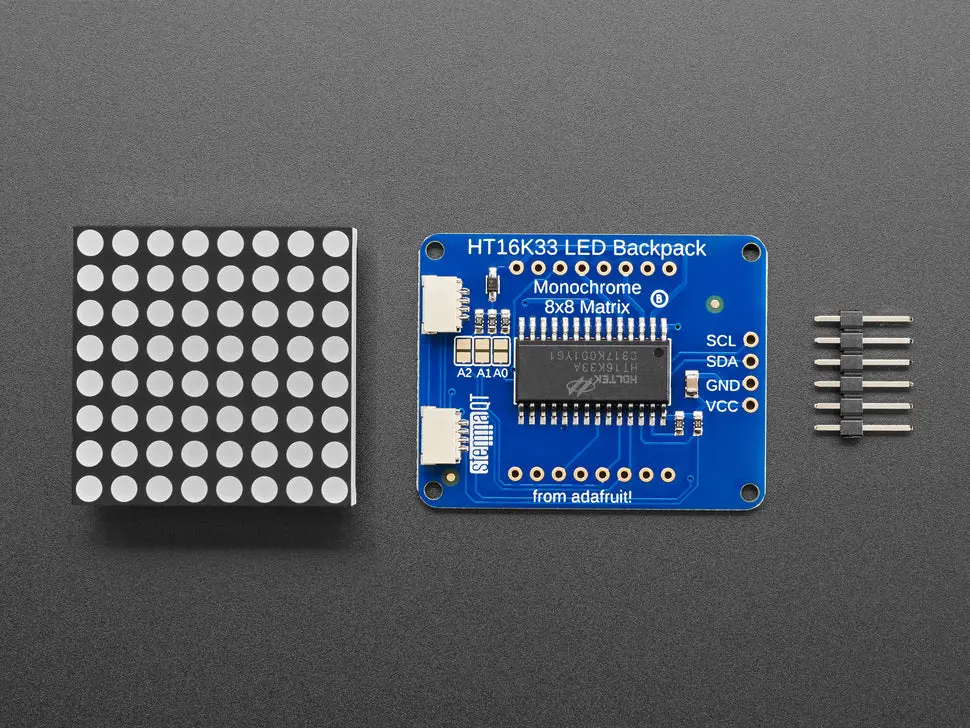

This kit comes with a fully tested and assembled LED backpack, an ultra-bright pure-green 1.2″ 8×8 matrix, and a 4-pin header. A bit of soldering is required to attach the matrix to the backpack, which only takes about 5 minutes.
The LED matrix backpack uses a built-in driver chip to multiplex the display with a constant-current driver for uniform brightness and offers 1/16 step display dimming, all controlled through a simple I2C interface. It features three address-selection jumpers allowing you to connect up to eight 1.2″ 8×8 matrices or combinations including 7-segment displays on a single I2C bus.
- Fully tested and assembled 1.2″ LED backpack
- Ultra-bright pure-green 1.2″ 8×8 matrix
- 4-pin header included
- Simple I2C interface with adjustable device address
- Supports up to 8 devices on a single I2C bus
- Driver chip with built-in clock and constant current driver
- 1/16 step brightness control
- Updated PCB with Stemma QT connectors for plug-and-play I2C usage
For detailed instructions on soldering, wiring, and controlling the display, refer to the Adafruit LED Backpack tutorial. A dedicated Arduino library is available to get you started quickly for displaying images or numbers.
