Description

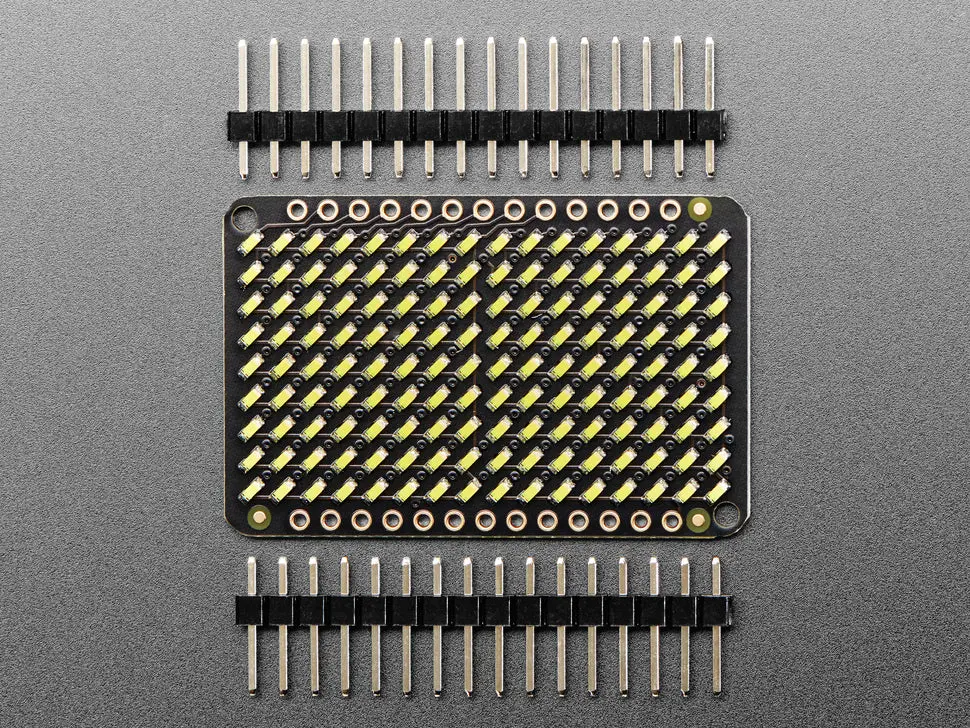

The LED Charlieplexed Matrix features a 9×16 arrangement of cool white LEDs designed to be used with the Adafruit 16×9 Charlieplexed PWM LED Matrix Driver – IS31FL3731. This product is a grid of LEDs without resistors or driver chips, ideal for advanced users to control and drive the LEDs through external drivers.
Features:
- 9×16 Charlieplexed LEDs
- Designed for use with Adafruit IS31FL3731 LED matrix driver
- Cool white LEDs with improved brightness (updated April 7, 2023)
- Compact size: 43.3mm x 27.8mm x 2.4mm
- Lightweight at 3.8 grams
- Compliant with RoHS 2 2011/65/EU and RoHS 2 2015/863/EU standards
Recommended for users looking to customize and control an LED matrix with PWM dimming and individual LED addressing via I2C communication with the IS31FL3731 driver.
Technical Specifications:
- Dimensions: 43.3mm x 27.8mm x 2.4mm (1.7″ x 1.1″ x 0.09″)
- Weight: 3.8g
For assembly, wiring details, and tutorials supporting Arduino and CircuitPython, visit the product tutorial. Datasheets, schematic, EagleCAD PCB files, and Fritzing support are also available there.
