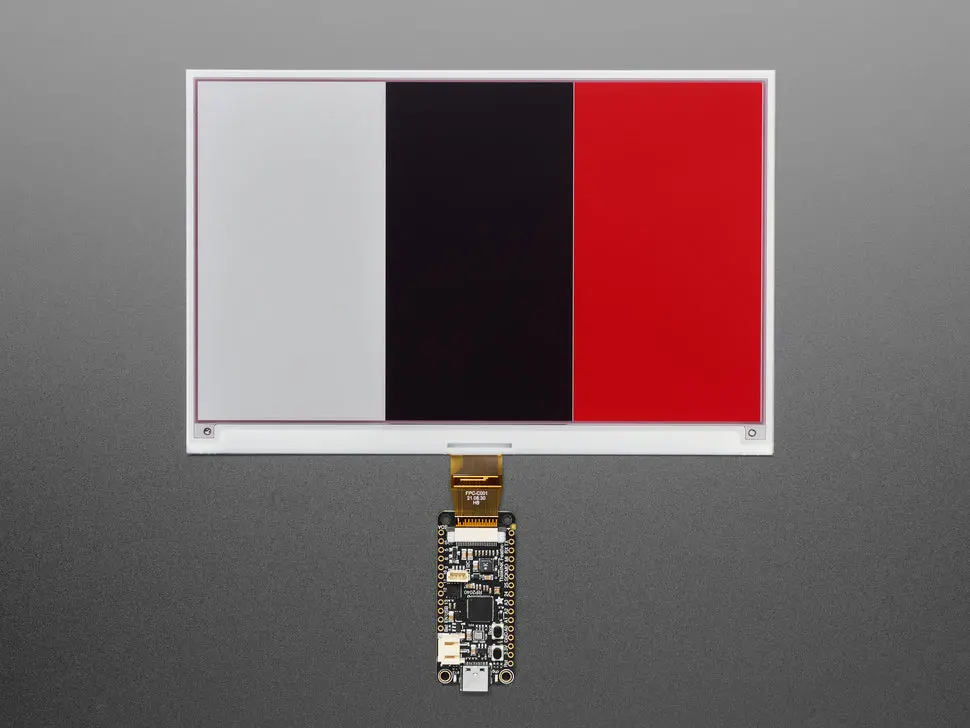

7.5-Inch 800×480 Tri-Color E-Ink Bare Display Module

Description

This 7.5 inch diagonal tri-color eInk / ePaper bare display offers a high-contrast, daylight visible screen with 800 x 480 pixel resolution in red, black, and white colors. The display maintains its image without power, ideal for low-power and battery-operated projects.

Key Features:

• Tri-color (red, black, white) eInk / ePaper display
• Resolution: 800 x 480 pixels
• 7.5 inch diagonal size
• Uses UC8179 chipset
• Image retains when power is disconnected (static display)
• Compatible with driver boards featuring 24-pin FPC e-paper connectors
• Ideal for DIY eInk applications and projects requiring low power and visibility in bright ambient light

Note: This is a bare display panel only and requires a compatible driver board such as the Feather RP2040 ThinkInk, eInk Feather Friend, or eInk Breakout Friend for use.

Refer to the provided datasheet for detailed specifications.
