60mm Green Arcade Button Featuring Built-in LED Illumination

Description

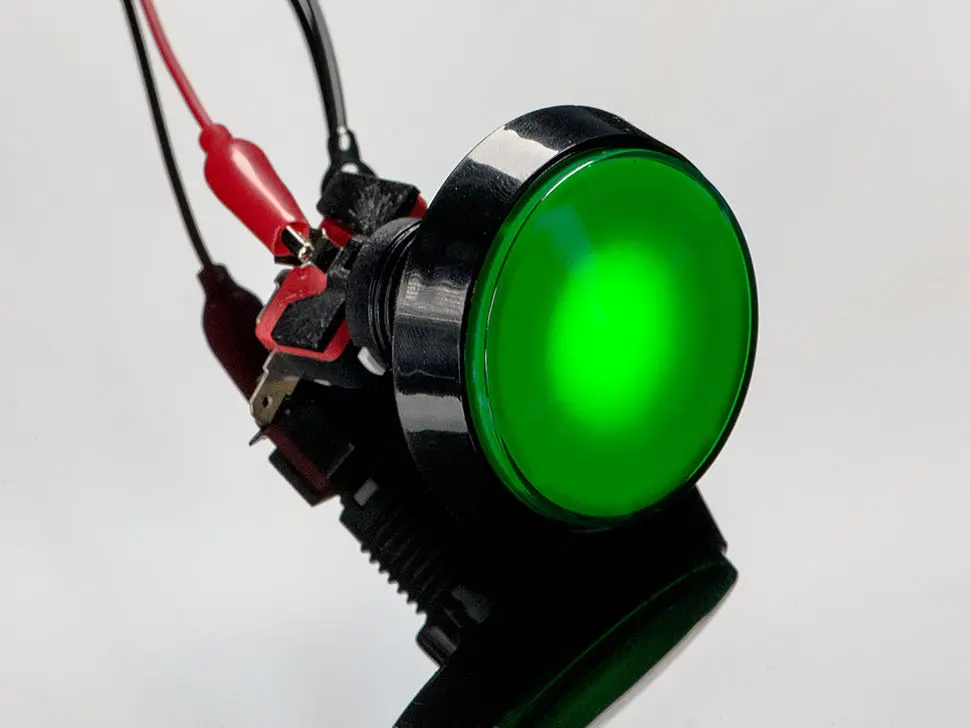

The Large Arcade Button with LED is a 60mm diameter green button that is large and easy to press, perfect for arcade games and DIY electronics projects. It features a flat green plastic cover with a black retaining ring. This button includes an optional LED with a built-in resistor that can run up to 12V, although it does not illuminate the entire button face evenly due to the button’s shallow depth. The button activates a normally open arcade microswitch when pressed.

• 60mm diameter green arcade button
• Includes optional LED with built-in resistor (up to 12V)
• Flat green plastic cover with black retaining ring
• Activates a normally open arcade microswitch
• 12mm / 0.5″ height when pressed
• 15.2mm / 0.6″ height when not pressed
• 52.5mm / 2.1″ stem length with switch installed
• Not waterproof or weatherproof; suitable for indoor use

This button is easy to mount on most enclosures and is ideal for arcade style games of skill.
